Products specifications Report Issue?

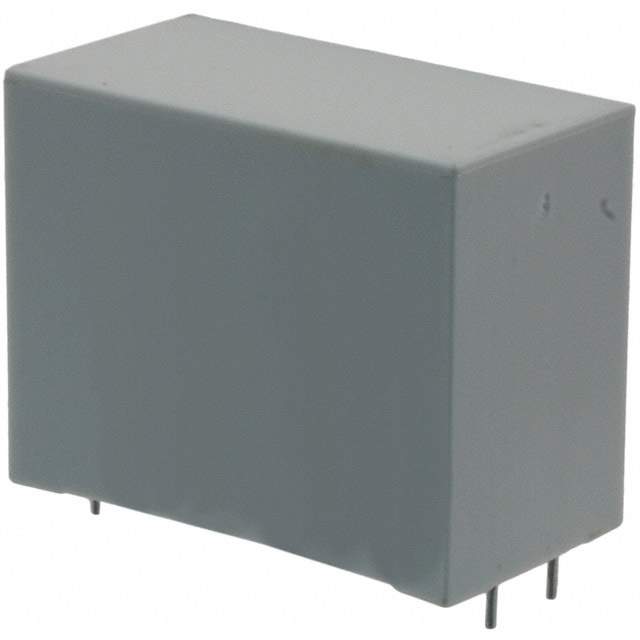

Category Capacitors>Film Capacitors
Mfr KEMET
Series C4AE
Package Bulk
Capacitance 30 µF
Tolerance ±5%
Voltage Rating - DC 900V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4.2 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max) 1.783" (45.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Base Product Number C4AEOB
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 4AEOBW5300A3MJ,399-6227
Standard Package 27
Win Source Part Number 1215467-C4AEOBW5300A3MJ
Ultra Librarian 3D Model Ultra Librarian C4AEOBW5300A3MJ CAD Model

Description

The C4AE series of capacitors from KEMET are designed for use in DC link, DC filtering, high frequency, and switching applications.

  • Capacitance: 30 µF
  • Tolerance: ±5%
  • Voltage Rating: 900V DC
  • ESR: 4.2 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Package: Radial with 4 Leads
  • Height (Seated): 1.783" (45.30mm)
  • Lead Spacing: 2.067" (52.50mm)
  • Operating Temperature: -40°C to 85°C
  • Base Product Number: C4AEOB
