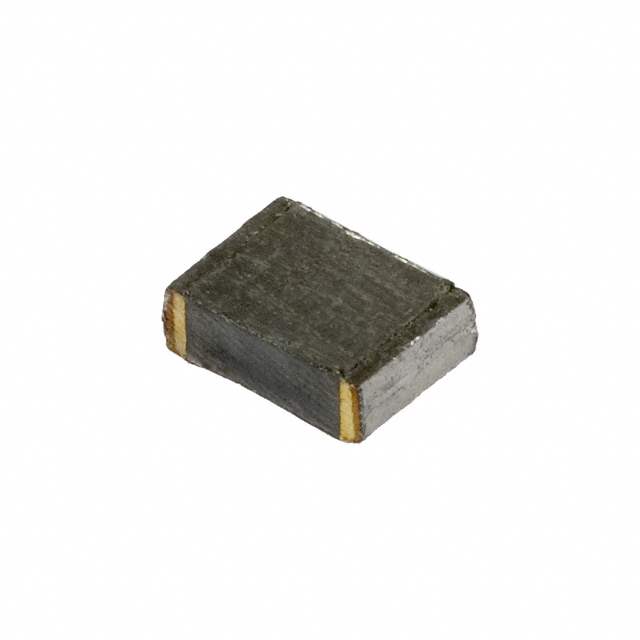

ECH-U1C683JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.068μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000844-ECH-U1C683JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1C683JB5 CAD Model

Description

ECH-U1C683JB5 - High-Quality Multilayer Ceramic Capacitor

The ECH-U1C683JB5 is a high-performance multilayer ceramic capacitor known for its reliability and efficiency. Designed with leading-edge technology, this component is ideal for a variety of electronic applications.

  • Features:
  • Compact size for space-saving designs
  • High capacitance stability
  • Low equivalent series resistance (ESR)
  • Wide temperature range suitability
  • Applications:
  • Consumer electronics
  • Telecommunications equipment
  • Automotive electronic circuits
  • Power supply circuits

The ECH-U1C683JB5 is optimally suited for use in sensitive electronic devices where high performance and reliability are paramount. Its robust construction ensures long-lasting operation even in demanding environments.
