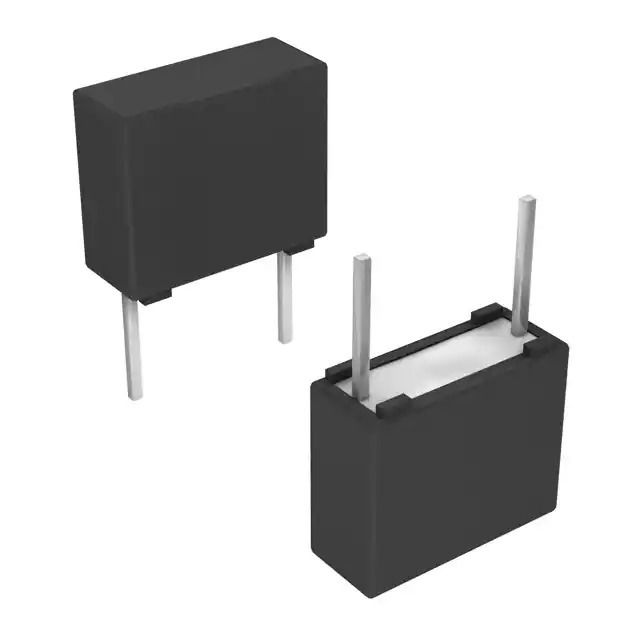

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 2
Package Bulk
Product Status Active
Capacitance 10000 pF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1360410-BFC233820103
Ultra Librarian 3D Model Ultra Librarian BFC233820103 CAD Model

Description

The 1360410-BFC233820103 is a film capacitor from the MKP338 2 series manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Series: MKP338 2
  • Mounting Type: Through Hole
  • Package: Radial
  • Capacitance: 10000 pF
  • Tolerance: ±20%
  • Voltage Rating (AC): 310VAC
  • Voltage Rating (DC): 630VDC
  • Application: EMI and RFI Suppression
  • Lead Spacing: 0.295" (7.50mm)
  • Dimensions: 0.394" L x 0.157" W (10.00mm x 4.00mm)
  • Height (Seated): 0.354" (9.00mm)
  • Temperature Range: -55°C to 110°C
  • HTSUS Code: 8532.25.0010
  • ECCN: EAR99
  • Dielectric Material: Polypropylene (PP)
