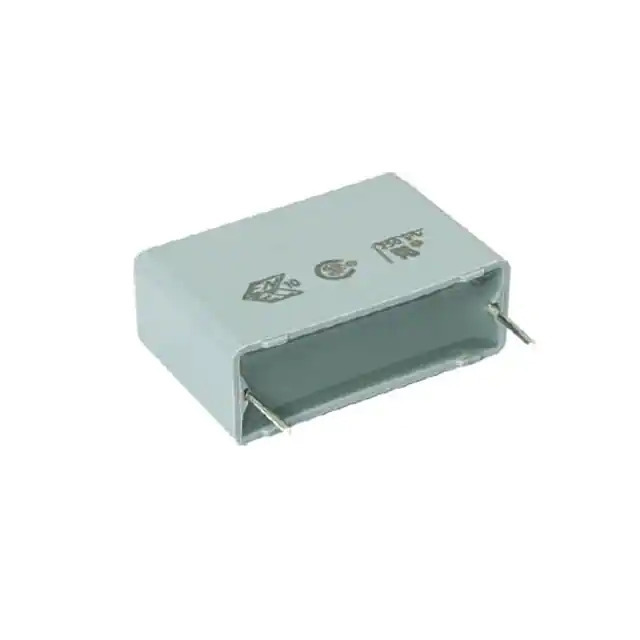

Same model may have multiple batches, images only for reference.
F17724102200 Vishay
Same model may have multiple batches, images only for reference.

F17724102200

Part No F17724102200
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 0.1UF 20% 630VDC RADIAL / 0.1 µF Film Capacitor 310V 630V Polyester, Metallized Radial
Datasheet
F17724102200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series F1772
Package Bulk
Product Status Active
Capacitance 0.1 µF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.689" L x 0.236" W (17.50mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Win Source Part Number 1360477-F17724102200
Ultra Librarian 3D Model Ultra Librarian F17724102200 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components F1772 is a film capacitor with a capacitance of 0.1 µF and a tolerance of ±20%.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Capacitance: 0.1 µF
  • Tolerance: ±20%
  • Application: EMI, RFI Suppression
  • Voltage Rating AC: 310V
  • Voltage Rating DC: 630V
  • Size / Dimension: 0.689" L x 0.236" W (17.50mm x 6.00mm)
  • Height - Seated (Max): 0.472" (12.00mm)
  • Mounting Type: Through Hole
  • Series: F1772
  • Ratings: X2
  • Packaging: Bulk
  • Lead Spacing: 0.591" (15.00mm)
  • Material: Polyester, Metallized
  • Product Status: Active
  • REACH: Unaffected
