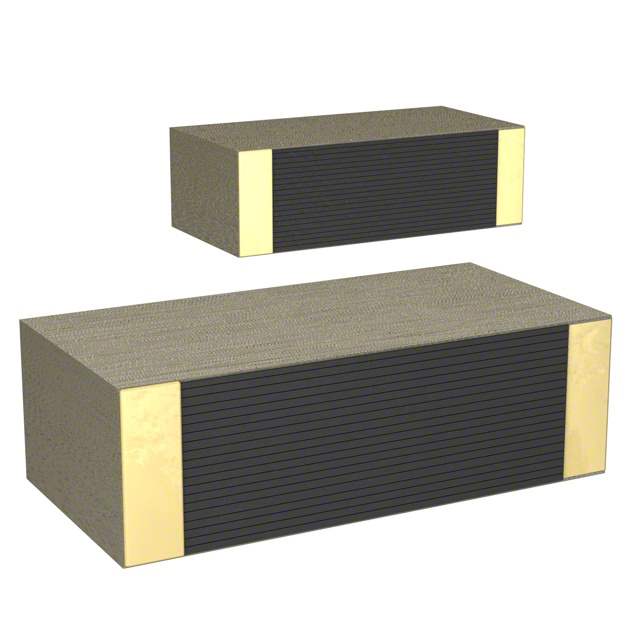

ECH-U1C123JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.012μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 096449-ECH-U1C123JB5
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ECH-U1C123JB5 CAD Model

Description

Product Overview:
The ECH-U1C123JB5 is a versatile and high-quality multilayer ceramic capacitor suitable for a wide range of electronic circuits requiring precision and reliability.
Applications:
  • Electric vehicles
  • Advanced robotics
  • Signal integrity enhancement
  • Consumer gadgets
  • Data acquisition systems
Features and Benefits:
  • Robust design for enhanced durability and lifespan
  • Excellent capacitance stability and frequency response
  • Meets RoHS standards for safety and environmental care
  • Wide operating temperature range allowing use in diverse applications
Additional Details:
Capacitance: 12nF<br>Voltage Rating: 16V<br>This capacitor is perfect for engineers focusing on the development of advanced electronic systems and devices that demand exceptional component reliability.
