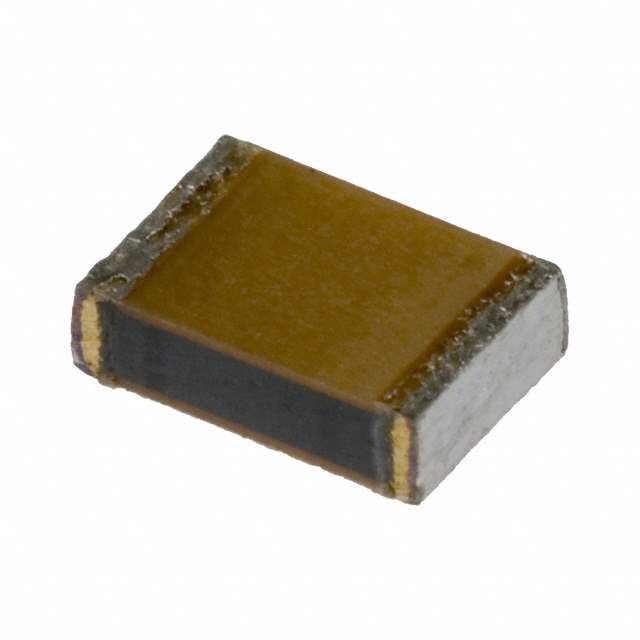

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.012μF
Tolerance ±2%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 115662-ECH-U1123GC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1123GC9 CAD Model

Description

Description:

The ECH-U1123GC9 is a high-capacity SMD film capacitor ideal for demanding electronic projects. It offers exceptional energy efficiency and a low profile, perfect for applications requiring reduced energy consumption and space savings.

Features & Benefits:

  • High capacitance value for greater energy storage.
  • Low ESR for improved circuit performance.
  • Slim profile for size-sensitive applications.
  • Excellent frequency response characteristics.

Applications:

  • Renewable energy systems
  • Portable electronic devices
  • High-efficiency power converters
  • Advanced computing hardware
