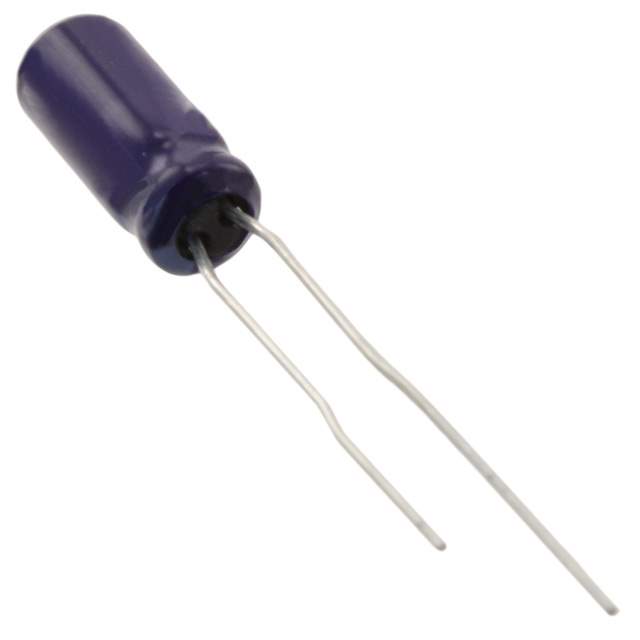

Same model may have multiple batches, images only for reference.

ECA-1VM470

Name: ECA-1VM470
Brand: Panasonic
SKU: 1181985
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ECA-1VM470
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 35V RADIAL / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	M-A
Package	Bulk
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	130 mA @ 120 Hz
Ripple Current @ High Frequency	221 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1VM
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA1VM470,P5164,Q1705153A,2266-ECA-1VM470
Standard Package	200
Win Source Part Number	1181985-ECA-1VM470
Ultra Librarian 3D Model	Ultra Librarian ECA-1VM470 CAD Model

Description

The Panasonic Electronic Components ECA-1VM series is an aluminum electrolytic capacitor designed for general-purpose applications.

Capacitance: 47 microfarads
Tolerance: ±20 percent
Rated Voltage: 35 V
Applications: power supplies, amplifiers, and audio equipment
Features: high reliability and long lifetime of 2000 hours @ 85°C
