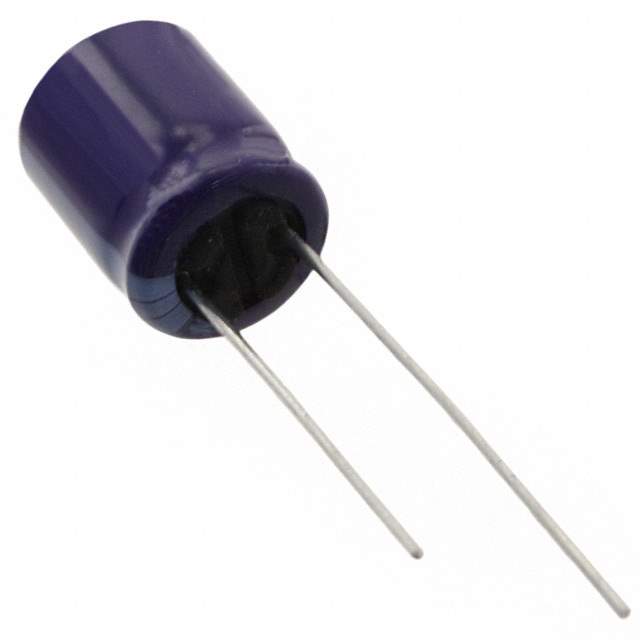

ECA-1HM471 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 650 mA @ 120 Hz
Ripple Current @ High Frequency 1.105 A @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1HM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1HM471,P5185
Standard Package 200
Win Source Part Number 1013609-ECA-1HM471
Ultra Librarian 3D Model Ultra Librarian ECA-1HM471 CAD Model

Description

The Panasonic ECA-1HM471 is a high-quality aluminum electrolytic capacitor that is designed to offer superior performance and reliability.

  • Capacitance: 470 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 85°C
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Series: M-A
