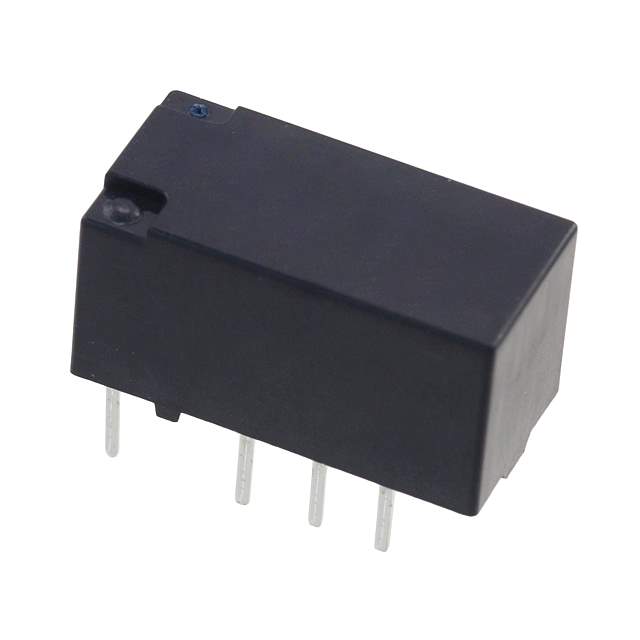

TXD2-2M-3V Real Image
Same model may have multiple batches, images only for reference.

TXD2-2M-3V

Part No TXD2-2M-3V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 3VDC / General Purpose Relay DPDT (2 Form D) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series TX-D
Package Tube
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form D)
Contact Rating (Current) 1 A
Switching Voltage 110VDC - Max
Coil Current 83.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 36 Ohms
Base Product Number TXD2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names TXD2-2M-3V-ND,255-6237
Standard Package 40
Win Source Part Number 1101666-TXD2-2M-3V
Ultra Librarian 3D Model Ultra Librarian TXD2-2M-3V CAD Model

Description

The TXD2-2M-3V is a general-purpose relay that has a DPDT (2 Form D) contact form.

  • Coil Voltage: 3VDC
  • Coil Resistance: 36 Ohms
  • Switching Voltage: 110VDC - Max
  • Contact Rating (Current): 1 A
  • Coil Type: Non-Latching
  • Seal Rating: Sealed - Fully Seal
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: Through-Hole
