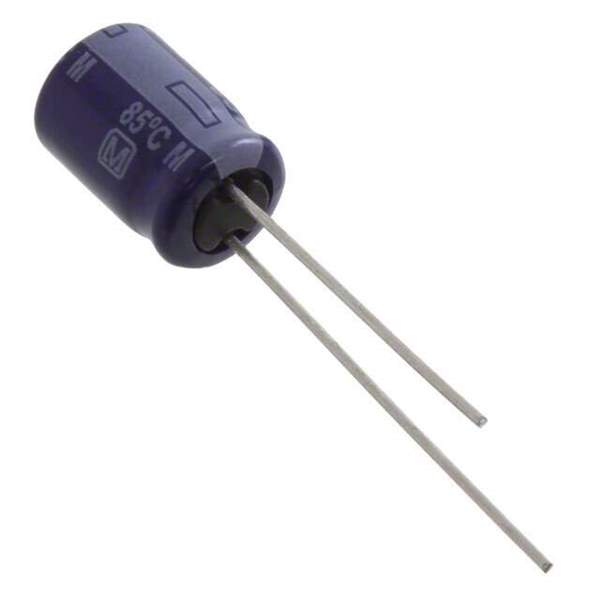

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 250 mA @ 120 Hz
Ripple Current @ High Frequency 425 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1HM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1HM101,P5182,Q2640810
Standard Package 200
Win Source Part Number 1056755-ECA-1HM101
Ultra Librarian 3D Model Ultra Librarian ECA-1HM101 CAD Model

Description

The Panasonic Electronic Components ECA-1HM101 is an aluminum electrolytic capacitor with a capacitance of 100 μF and a voltage rating of 50 V.

  • Tolerance: ±20%
  • Temperature Range: -40°C to 85°C
  • Package Type: radial, can
  • Mounting: through hole
  • Ripple Current: 250 mA @ 120 Hz and 425 mA @ 10 kHz
  • Widely Used in: applications such as general purpose and comes in a bulk packaging type.
  • Part of: the M-A series
  • Lifetime: 2000 Hrs @ 85°C
