Microchip Technology's PIC16C74A/JW Microcontroller

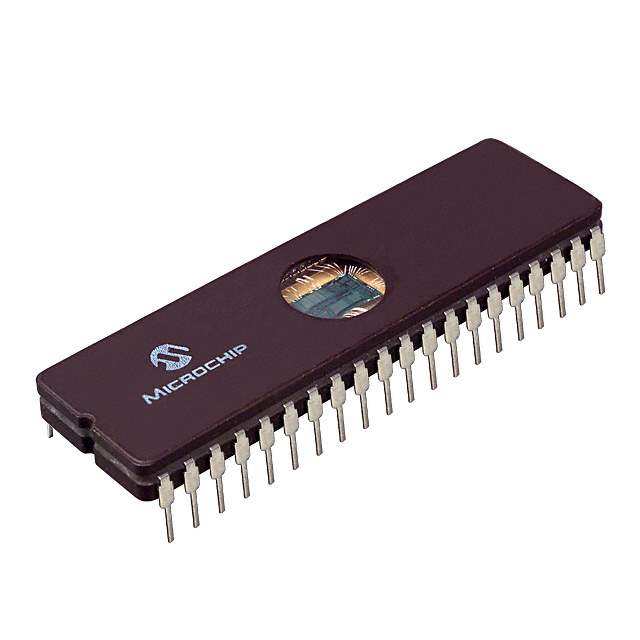

The PIC16C74A/JW from Microchip Technology is a high-performance, CMOS, fully-static, 8-bit microcontroller packed with a wide range of features and capabilities. This versatile microcontroller is designed to support a variety of applications across diverse industries, including automotive, consumer electronics, and industrial automation. Its windowed ceramic package is particularly suitable for development purposes, allowing for easy erasure and reprogramming with ultraviolet light.

Key Features:

• Core: The PIC16C74A/JW is built around a powerful PIC microcontroller core with a 33 instruction set that provides a balanced blend of performance and power efficiency. It operates at a maximum frequency of 20 MHz, enabling responsive operation for time-sensitive tasks.
• Memory: It includes 7 KB of on-chip program memory and 192 bytes of RAM, ensuring ample space for application code and data handling. The device also features 192 bytes of EEPROM for non-volatile data storage.
• I/O Ports: The device boasts 33 dedicated input/output pins, providing extensive interfacing capabilities with external peripherals and devices. This allows for flexible design options and system expansion.
• Timers: Equipped with three distinct timers, the PIC16C74A/JW can handle multiple timing tasks, such as event counting, interval timing, and pulse width modulation (PWM).
• Analog Features: It includes an 8-channel, 8-bit analog-to-digital converter (ADC), enabling the microcontroller to interface with analog sensors and convert their signals for digital processing.
• Communication Peripherals: The device supports serial communication with a synchronous serial port for SPI and I2C, as well as an asynchronous serial port for RS-232, RS-485, and LIN network communication, making it highly versatile in embedded system communication networks.
• Power Management: The PIC16C74A/JW offers several power-saving modes, including an idle mode that reduces CPU speed while maintaining the operation of peripherals, and a sleep mode that minimizes power consumption to preserve battery life in portable applications.

Whether you're developing complex control systems or simple automation tasks, the PIC16C74A/JW from Microchip Technology provides the reliability, flexibility, and performance needed to meet the demands of modern electronic applications. Its windowed package design also makes it an ideal choice for iterative development processes, allowing for quick updates and testing of firmware changes.
