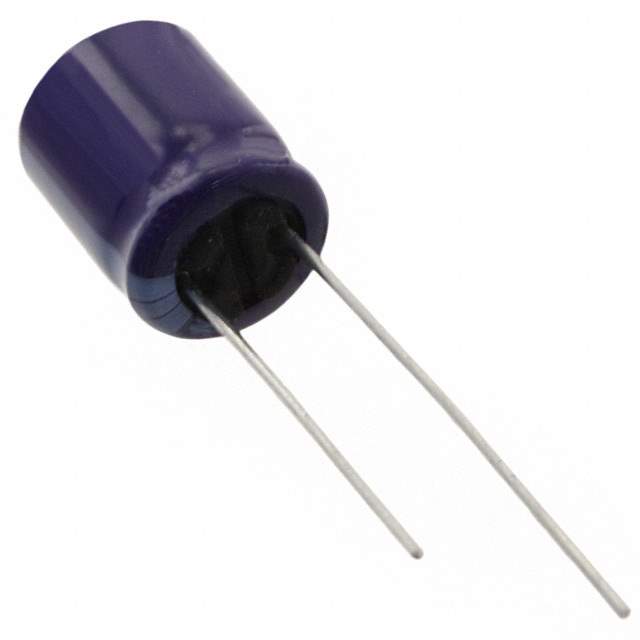

ECA-1EM471 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 480 mA @ 120 Hz
Ripple Current @ High Frequency 816 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.531" (13.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1EM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1EM471,Q1222069,P5155
Standard Package 200
Win Source Part Number 1036179-ECA-1EM471
Ultra Librarian 3D Model Ultra Librarian ECA-1EM471 CAD Model

Description

The Panasonic Electronic Components ECA-1EM471 is a radial, can style aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 25 V.

  • Tolerance: It has a tolerance of ±20% and an ESR (Equivalent Series Resistance) of - with a lead spacing of 0.197" (5.00mm).
  • Polarization: This capacitor is polarized and is designed for through-hole mounting.
  • Dimensions: It has a height of 0.531" (13.50mm) and a diameter of 0.394" (10.00mm).
  • Lifetime: The ECA-1EM471 has a lifetime of 2000 hours @ 85°C and is suitable for general purpose applications.
  • Application: It is an ideal choice for use in various electronic circuits and devices.
