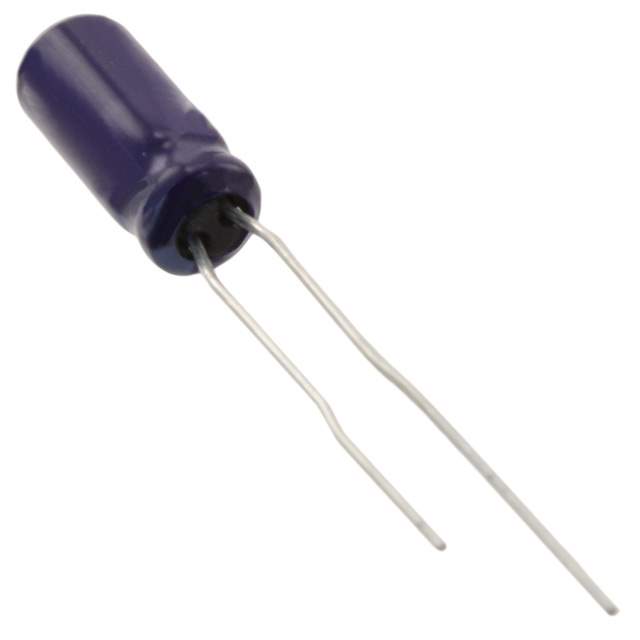

ECA-1CM220 Real Image
Same model may have multiple batches, images only for reference.

ECA-1CM220

Part No ECA-1CM220
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V RADIAL  /  22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 75 mA @ 120 Hz
Ripple Current @ High Frequency 127.5 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1CM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q1077027,P5135,ECA1CM220
Standard Package 200
Win Source Part Number 1034767-ECA-1CM220
Ultra Librarian 3D Model Ultra Librarian ECA-1CM220 CAD Model

Description

The Panasonic Electronic Components ECA-1CM220 is an aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 16 V.

  • Manufacturer: Panasonic Electronic Components
  • Capacitance: 22 µF
  • Voltage Rating: 16 V
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Application: General-Purpose
  • Lifetime: 2000 hours @ 85°C
  • Tolerance: ±20%
  • Ripple Current: 75 mA @ 120 Hz, 127.5 mA @ 10 kHz
