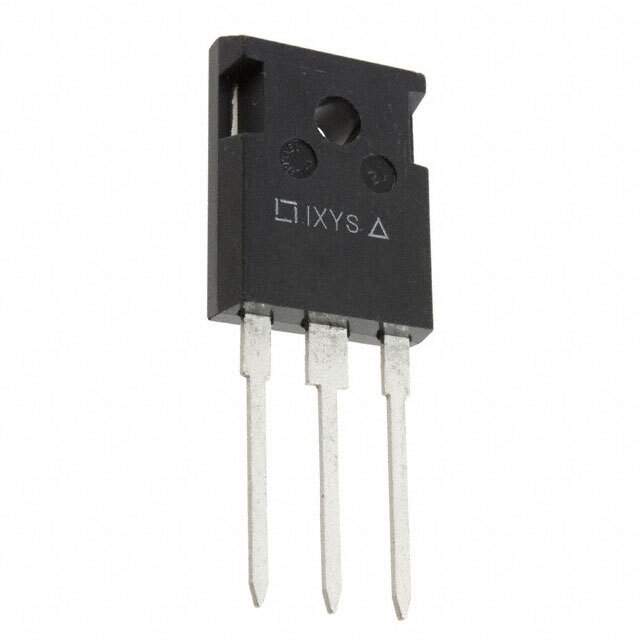

CS45-08IO1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Voltage - On State (Vtm) (Max) 1.64V
Current - On State (It (AV)) (Max) 48A
Current - On State (It (RMS)) (Max) 75A
Current - Hold (Ih) (Max) 100mA
Current - Off State (Max) 5mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 520A, 560A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 140°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 1030391-CS45-08IO1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CS45-08IO1 CAD Model

Description

The 1030391-CS45-08IO1 is a through-hole SCR (Standard Recovery) that has a maximum off-state voltage of 800V by IXYS.

  • Mounting: Through-Hole
  • SCR Type: Standard Recovery
  • Maximum Off-State Voltage: 800V
  • Maximum On-State Current: 48A
  • Maximum Gate Trigger Voltage: 1.5V
  • Maximum Gate Trigger Current: 100mA
  • Maximum On-State Voltage: 1.64V
  • Maximum Non-Repetitive Surge Current: 520A @ 50Hz, 560A @ 60Hz
  • Package: TO-247AD
  • Operating Temperature: -40°C to 140°C
