Same model may have multiple batches, images only for reference.

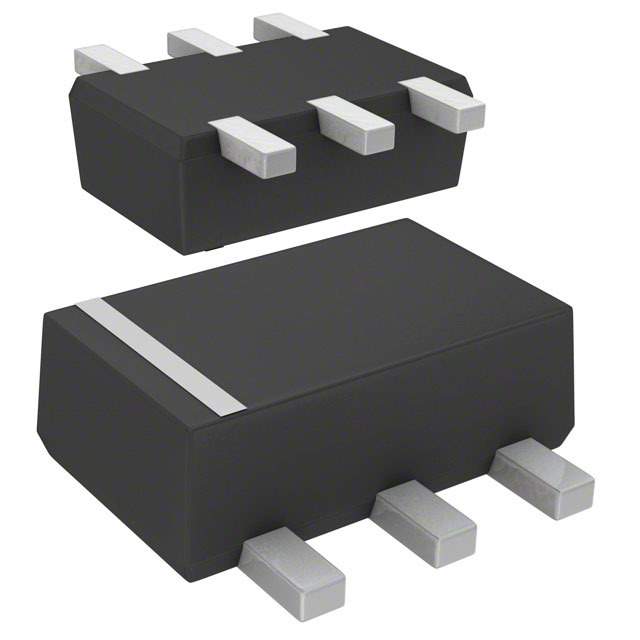

DB6J316K0R Real Image
Same model may have multiple batches, images only for reference.

DB6J316K0R

Part No DB6J316K0R
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SMINI6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Reel
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Maximum) at If 550mV at 100mA
Reverse Recovery Time (trr) 800ps
Current - Reverse Leakage at Vr 15μA at 30V
Operating Temperature - Junction 125°C (Maximum)
Mounting Style SMD
Manufacturer Package 6-SMD, Flat Leads
Supplier Device Package SMini6-F3-B
Part Number Series DB6J316
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802160-DB6J316K0R
Ultra Librarian 3D Model Ultra Librarian DB6J316K0R CAD Model

Description

The DB6J316K0R from Panasonic Electronic Components is a Schottky diode with three independent diode configurations.

  • Diode Configurations: Three Independent
  • Maximum Reverse Recovery Time: 800ps
  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 100mA
  • Forward Voltage: 550mV @ 100mA
  • Package: 6-SMD, Flat Leads
  • Maximum Junction Temperature: 125°C
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Reverse Leakage Current @ Maximum Reverse Voltage: 15μA
