Same model may have multiple batches, images only for reference.

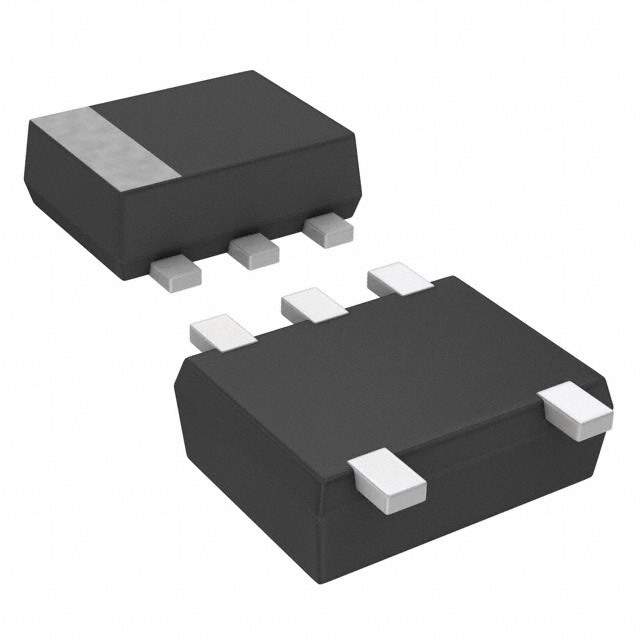

DB5S406K0R Real Image
Same model may have multiple batches, images only for reference.

DB5S406K0R

Part No DB5S406K0R
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V SSMINI5
Datasheet
DB5S406K0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 600mV @ 100mA
Reverse Recovery Time (trr) 900ps
Current - Reverse Leakage @ Vr 5μA @ 40V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SSMini5-F4-B
Win Source Part Number 1032689-DB5S406K0R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB5S406K0R CAD Model

Description

It is a Schottky diode with a voltage rating of 45V and a forward voltage of 600mV @ 100mA.

  • Voltage Rating: 45V
  • Forward Voltage: 600mV @ 100mA
  • Reverse Recovery Time (trr): 900ps
  • Current - Reverse Leakage @ Vr: 5μA @ 40V
  • Operating Temperature Range: Up to 125°C
