DB2W60400L

Part No DB2W60400L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 2A 12ns 2-Pin Mini2-F3-B T/R / DIODE SCHOTTKY 60V 2A MINI2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 660mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 12ns
Current - Reverse Leakage @ Vr 300μA @ 60V
Capacitance @ Vr, F 38pF @ 10V, 1MHz
Mounting SMD (SMT)

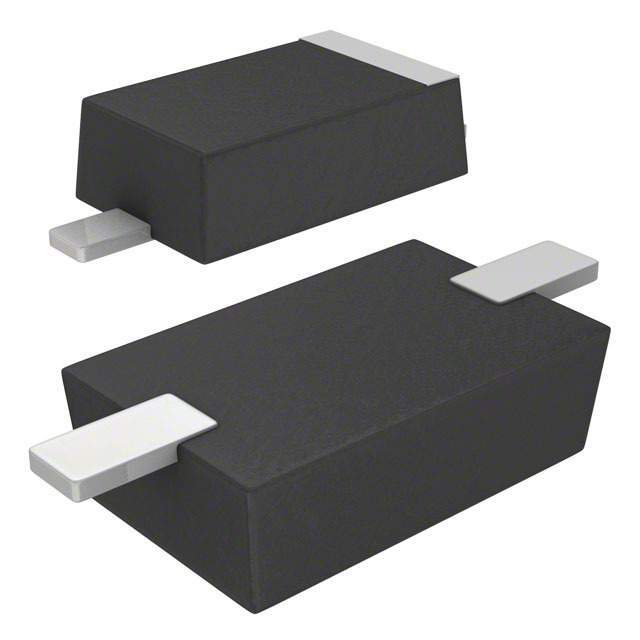

Case / Package Mini2-F3-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032674-DB2W60400L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DB2W604
Introduction Date September 12, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DB2W60400L CAD Model

Description

The Panasonic Electronic Components DB2W60400L is a Schottky diode that has a voltage of 60V and a current of 2A.

  • Voltage: 60V
  • Current: 2A
  • Forward Voltage: 660mV @ 2A
  • Reverse Recovery Time: 12ns
  • Packaging: Mini2-F3-B
  • Speed: Fast Recovery, 200mA (Io)
  • Operating Temperature: Up to 150°C (Max)
  • Part Status: Active
  • Popularity: High
