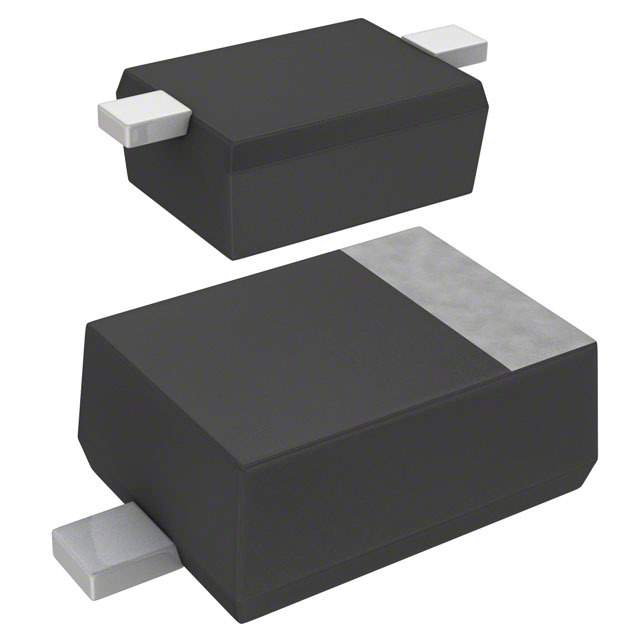

DB2J31600L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 100mA
Reverse Recovery Time (trr) 800ps
Current - Reverse Leakage @ Vr 15μA @ 30V
Capacitance @ Vr, F 2pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F5-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032665-DB2J31600L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2J31600L CAD Model

Description

The DB2J31600L is a Schottky diode used as a discrete semiconductor product.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 100mA
  • Maximum Forward Voltage: 550mV @ 100mA
  • Reverse Recovery Time: 800ps
  • Leakage Current: 15μA @ 30V
  • Capacitance: 2pF @ 10V, 1MHz
  • Operating Temperature (Junction): 125°C (Max)
  • Package: SMini2-F5-B
  • Quantity: 1
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Win Source Part Number: 1032665
