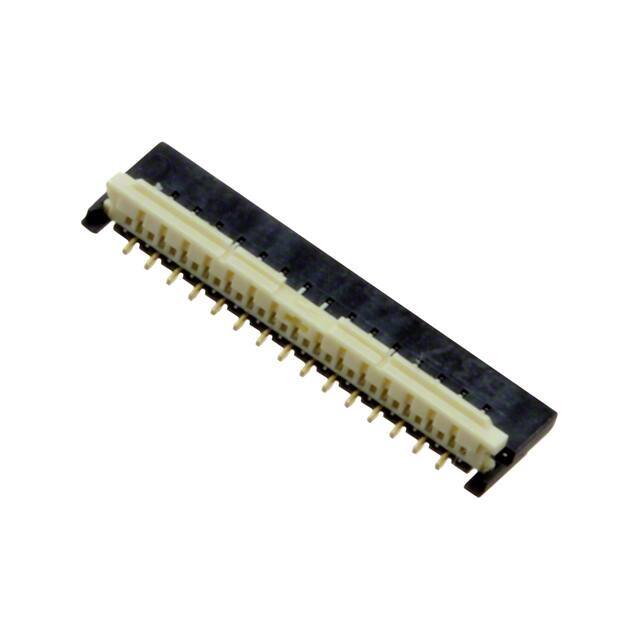

AYF353125A
Same model may have multiple batches, images only for reference.

AYF353125A

Part No AYF353125A
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 31POS 0.3MM R/A / 31 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Panasonic
Series Y3BL
Package Bulk
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.023" (0.59mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Mating Cycles 20
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 862802-AYF353125A
Ultra Librarian 3D Model Ultra Librarian AYF353125A CAD Model

Description

The AYF353125A is a FFC, FPC (Flat Flexible) Connector Assembly from Panasonic's Y3BL series.

  • Mounting: Surface mount, right angle
  • Positions: 31
  • Pitch: 0.012" (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • Height Above Board: 0.023" (0.59mm)
  • Flat Flex Type: FPC
  • Locking Feature: Flip lock, backlock
  • Cable End Type: Tapered
  • Housing Material: Liquid crystal polymer (LCP)
  • Manufacturer: Panasonic
  • Product Status: Obsolete
  • Standard Package: 500 pcs
