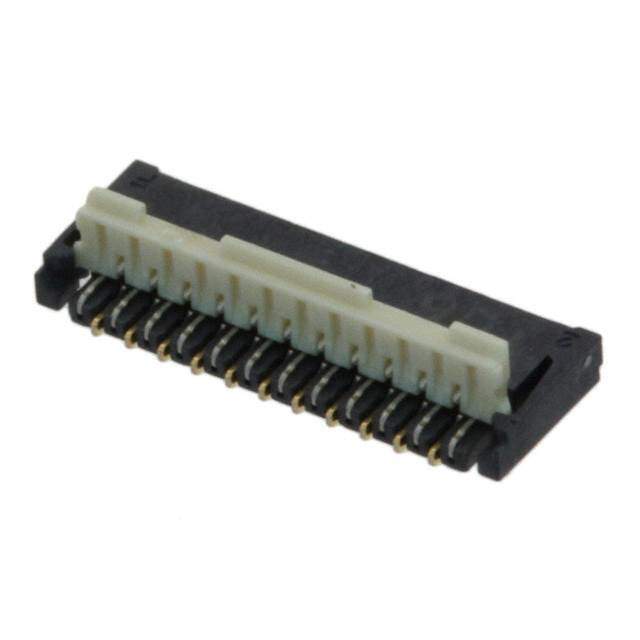

AYF332335

Part No AYF332335
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 23POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 23
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Win Source Part Number 079347-AYF332335
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AYF332335 CAD Model

Description

The AYF332335 sets a new standard in electronic component design, offering superior performance and longevity. It is engineered for integration into systems where low energy consumption is critical without compromising effectiveness.

Applications

  • Renewable energy systems
  • Home automation devices
  • Portable electronics

Features and Benefits

  • Energy-efficient for reduced environmental impact
  • Rugged construction suitable for harsh environments
  • Low noise operation for minimal interference

This component is suited for eco-friendly applications, aiming to reduce energy consumption while maintaining high performance standards.
