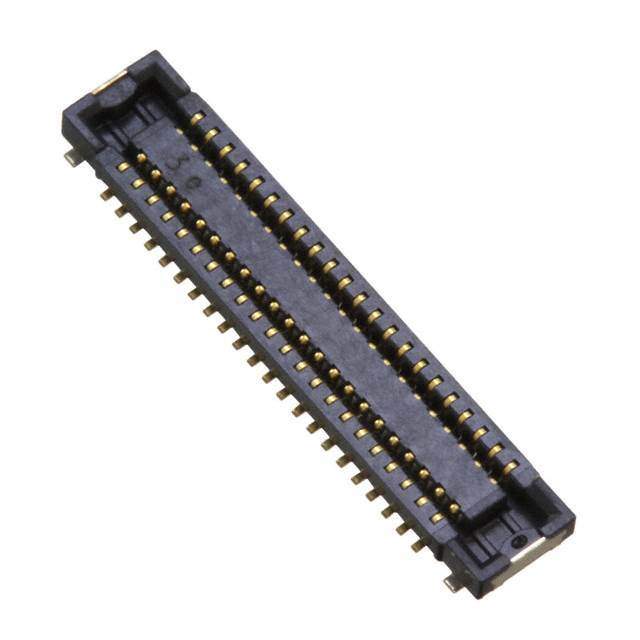

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A4S
Package Tape & Reel (TR)
Connector Type Socket, Center Strip Contacts
Number of Positions 44
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE544
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 5,000
Win Source Part Number 963625-AXE544127
Ultra Librarian 3D Model Ultra Librarian AXE544127 CAD Model

Description

The Panasonic Electric Works AXE544127 is a rectangular connector that has 44 positions and a pitch of 0.016 inches (0.40mm).

  • Contacts: center strip contacts
  • Package: socket package
  • Height Above Board: 0.030 inches (0.75mm)
  • Application: suitable for use in various electronic devices.
