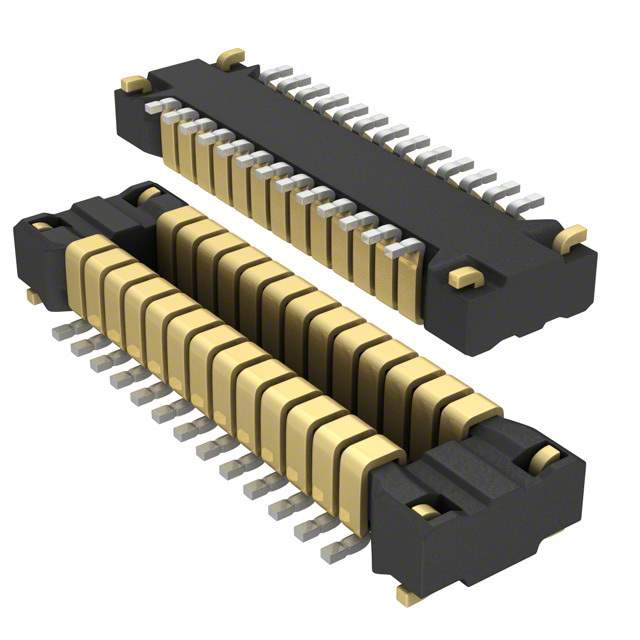

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021134-AXT626124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT626124 CAD Model

Description

The Panasonic Electric Works header connector is a highly reliable and efficient connector type for your electronic devices.

  • Positions: 26
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention, Center Strip
  • Contact Finish: Gold
  • Height Above Board: 0.033" (0.84mm)
  • Mounting: SMD (SMT)
  • Supply and Demand: Balance
  • Package: 3k pcs
