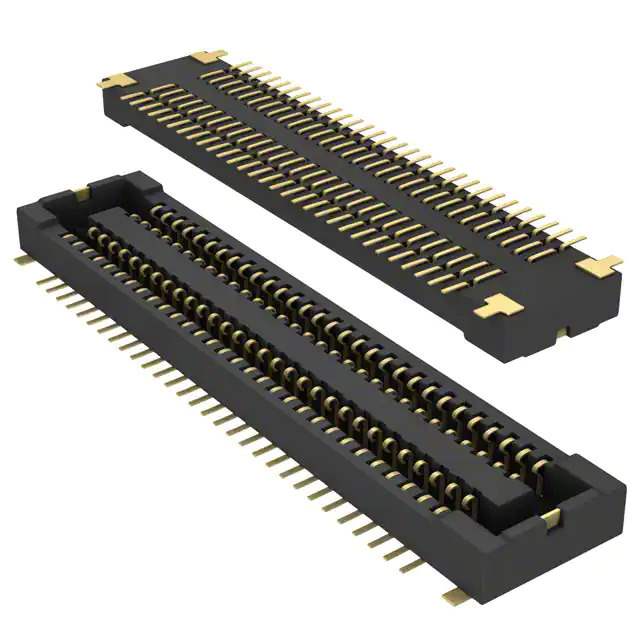

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Base Product Number AXT560
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 567392-AXT560124
Ultra Librarian 3D Model Ultra Librarian AXT560124 CAD Model

Description

The 567392-AXT560124 is a rectangular connector array designed for edge-type mezzanine board-to-board connections.

  • Series: F4S
  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Type: Socket with outer shroud contacts
  • Rows: 2
  • Contact Finish: Gold
  • Package: Tape & reel
  • Standard Package: 3,000 pcs
  • Mounting Type: Surface mount
  • Height Above the Board: 0.038" (0.97mm)
  • Manufacturer: Panasonic
  • Base Product Number: AXT560
  • Status: Active
