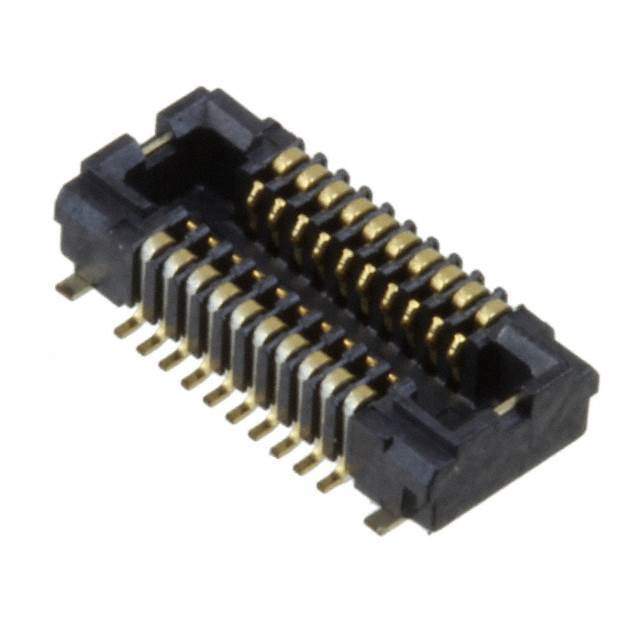

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Win Source Part Number 1021085-AXT320124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT320124 CAD Model

Description

The 1021085-AXT320124 is a 20-position socket connector with outer shroud contacts from Panasonic Electric Works.

  • Positions: 20
  • Contact Type: outer shroud
  • Features: solder retention
  • Contact Finish: gold
  • Pitch: 0.016 inches (0.40mm)
  • Rows: 2
  • Mated Stacking Height: 1.5mm
  • Height Above Board: 0.057 inches (1.45mm)
  • Mounting Technology: surface-mount technology (SMT)
  • Packaging: reel - TR
  • Package Quantity: 1k pcs
