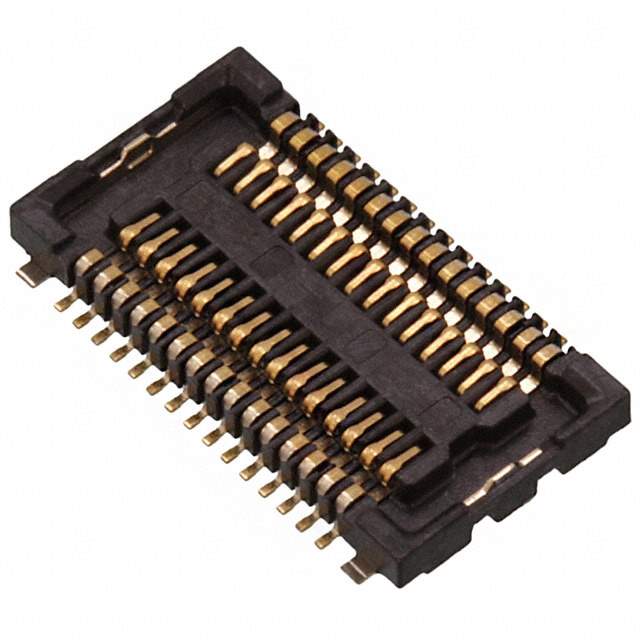

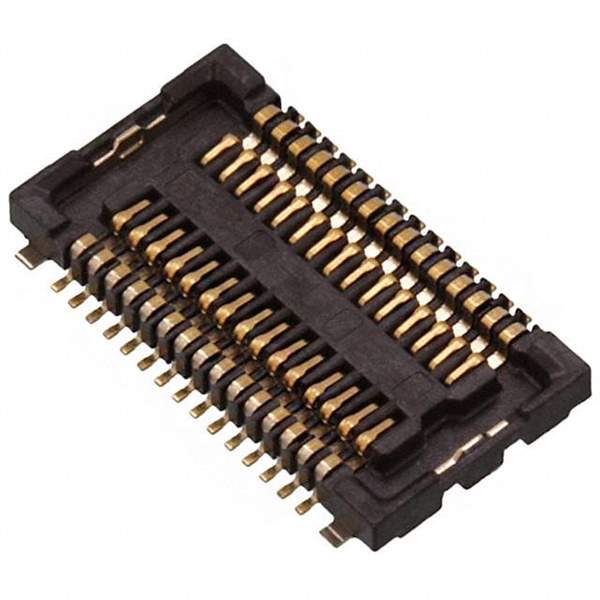

AXK7L30223G

Part No AXK7L30223G
Manufacturer Panasonic
Catalog Rectangular - Board to Board Connectors
Description CONN SOCKET FPC .4MM 30POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 66338-AXK7L30223G
Family Name AXK
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AXK7L30223G CAD Model

Description

AXK7L30223G Electronic Connector

The AXK7L30223G connector is crafted for applications requiring dependable and efficient performance. Suitable for a broad spectrum of projects, it assures reliability and precision.

  • Applications:
    • Consumer Electronics
    • Telecommunication Networks
    • Power Distribution Units
    • Automated Systems
    • Marine Electronics
  • Features and Benefits:
    • High-frequency performance features
    • Moisture and dirt resistance for outdoor applications
    • Seamless integration with existing systems
    • Enhanced safety features
    • Compact yet robust design

    Use the AXK7L30223G for projects that demand consistent, high-quality connections in challenging environments.
