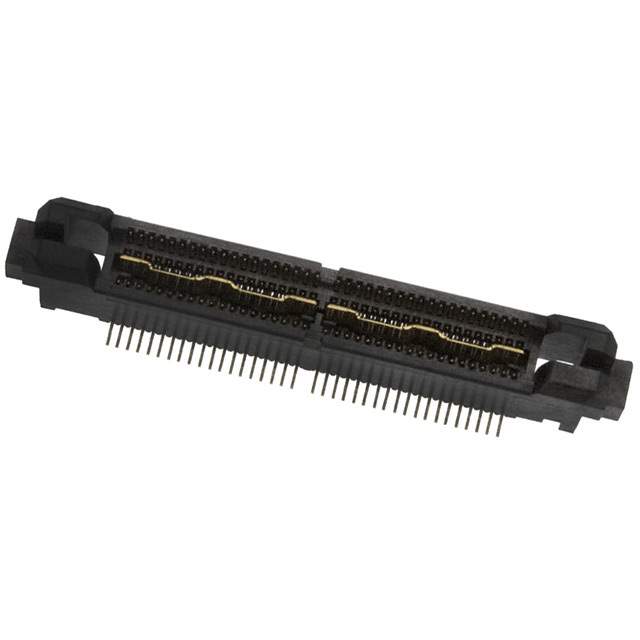

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series MICTOR
Package Tube
Connector Type Plug, Outer Shroud Contacts
Number of Positions 76
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 6.6mm, 15.62mm
Height Above Board 0.251" (6.38mm)
Base Product Number 5767007
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A32312,-5767007-9-SI,2266-5767007-9,57670079
Standard Package 14
Win Source Part Number 1032688-5767007-9
Ultra Librarian 3D Model Ultra Librarian 5767007-9 CAD Model

Description

The TE Connectivity AMP Connectors MICTOR series is a rectangular connector array with edge type mezzanine (board to board) design.

  • Series: MICTOR
  • Connector Type: Rectangular Connector Array
  • Mounting Type: Mezzanine (Board to Board)
  • Positions: 76
  • Rows: 2
  • Pitch: 0.025" (0.64mm)
  • Features: Board Guide, Ground Bus (Plane)
  • Connector Type: Plug with Outer Shroud Contacts
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tube
  • Mated Stacking Heights: 6.6mm, 15.62mm
  • Height Above Board: 0.251" (6.38mm)
