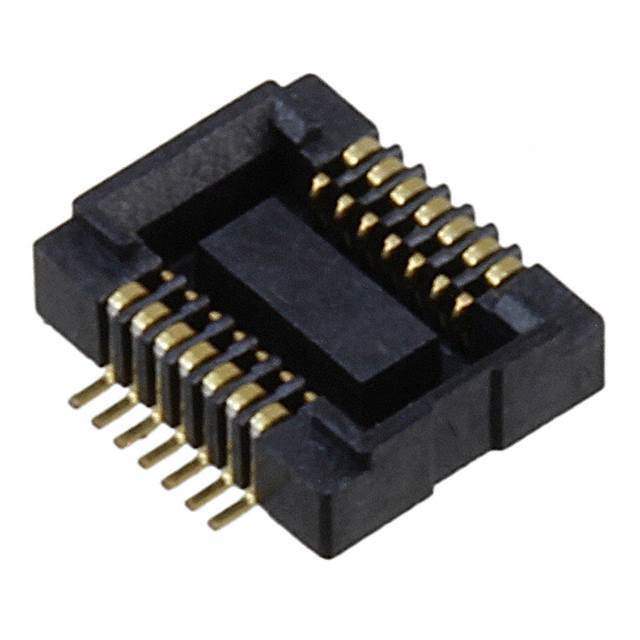

The AXK714147G is a board-to-board connector manufactured by Panasonic. It's designed for high-density, fine-pitch connections in electronic devices. This connector ensures reliable signal transmission in various applications.

Applications

• Mobile phones
• Digital cameras
• Notebook PCs
• Tablets
• Other portable electronic devices requiring board-to-board connections

Features

• Fine Pitch: Offers a fine pitch, enabling high-density mounting on PCBs.
• High-Speed Transmission: Designed for high-speed signal transmission, ensuring signal integrity.
• Robust Contact Design: Features a robust contact design for reliable connections even under vibration and shock.
• Compact Size: The small form factor allows for space-saving designs.
• Shielded Options: Some variants come with shielding to minimize EMI/RFI.

Benefits

• High Density: Enables compact and dense electronic designs.
• Reliable Connection: Ensures stable and secure connections, reducing signal loss.
• Space Saving: Compact size allows for smaller and lighter devices.
• Improved Signal Integrity: High-speed transmission capability ensures minimal signal distortion.
• EMI/RFI Protection: Shielded options minimize interference from external sources.

Additional Details

The AXK714147G is available in various pin counts and mounting options. It typically uses a surface mount technology (SMT) for easy integration into PCB assemblies. The connector is made of high-quality materials to ensure durability and long-term reliability. The specific number of contacts is 14 and the pitch is 0.4mm. The AXK series from Panasonic is known for its high reliability and is suitable for use in a wide array of electronic devices.
