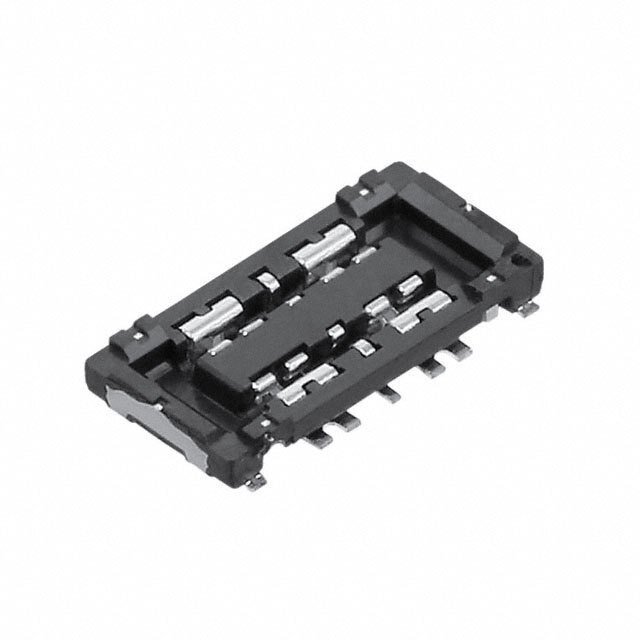

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series B01
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 6
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.023" (0.59mm)
Base Product Number AXF361
Standard Package 15,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862740-AXF361500
Ultra Librarian 3D Model Ultra Librarian AXF361500 CAD Model

Description

The Panasonic B01 series is a compact and reliable rectangular connector array designed for board-to-board connections. With 6 positions, this connector offers a simple and efficient solution for small-scale connections.

  • Series: B01 series
  • Design: Board-to-board connections
  • Positions: 6
  • Contact Type: Socket features center strip contacts
  • Contact Finish: Gold
  • Mounting: Surface mount mounting
  • Height Above the Board: 0.023" (0.59mm)
  • Packaging: Tape & reel packaging
  • Standard Package Size: 15,000 pcs
  • Manufacturer: Panasonic
  • Product Line: AXF361
  • Status: Active
