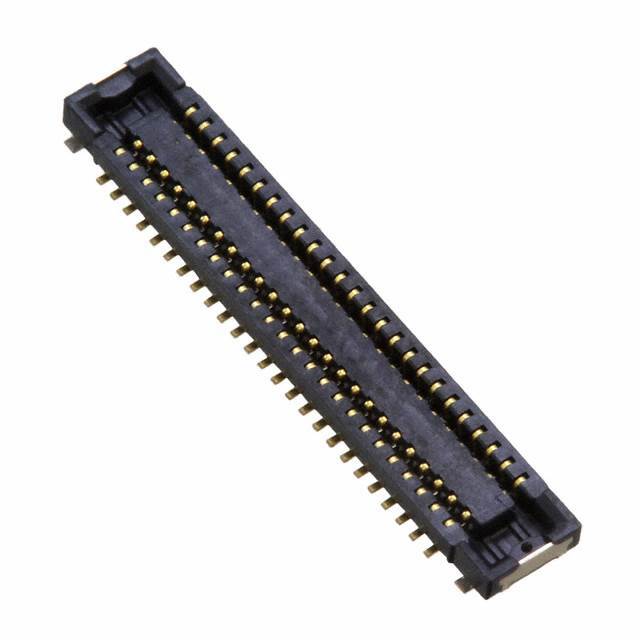

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE550
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862734-AXE550127
Ultra Librarian 3D Model Ultra Librarian AXE550127 CAD Model

Description

The AXE550127 is a rectangular connector array with 50 positions. It has a pitch of 0.016" (0.40mm) and features solder retention.

  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Type: Socket with center strip contacts
  • Rows: Two
  • Contact Finish: Gold
  • Mounting: Surface mount applications
  • Height Above the Board: 0.030" (0.75mm)
  • Package: Tape and reel
  • Standard Quantity: 5,000 pieces
  • Status: Active product
  • Manufacturer: Panasonic
  • Application: Mezzanine board-to-board connections
