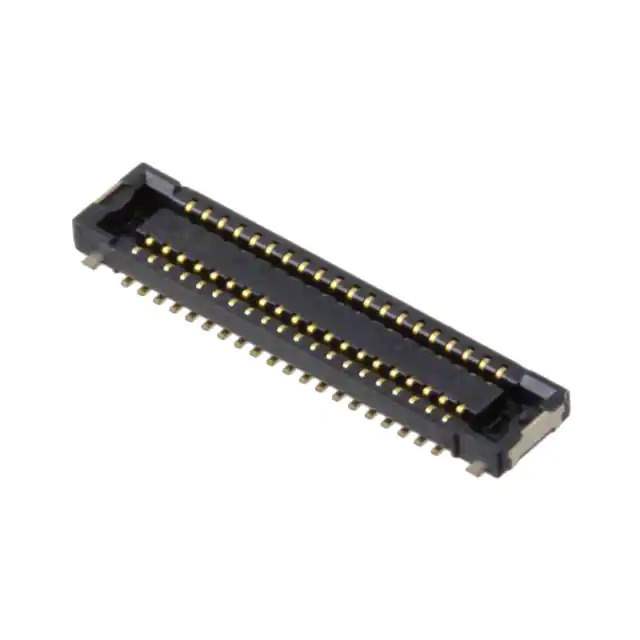

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE540
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862733-AXE540127
Ultra Librarian 3D Model Ultra Librarian AXE540127 CAD Model

Description

The AXE540127 is a rectangular connector array from Panasonic. It is designed for board-to-board connections in electronic devices and systems.

  • Connector Type: Rectangular connector array
  • Manufacturer: Panasonic
  • Application: Board-to-board connections
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Connector Type: Socket connector with center strip contacts
  • Rows: Two
  • Contact Finish: Gold
  • Package: Tape & reel
  • Pieces Per Package: 5,000 pieces
  • Mated Stacking Heights: 0.8mm and 1mm
  • Height Above the Board: 0.030" (0.75mm)
  • Mounting Type: Surface mount
