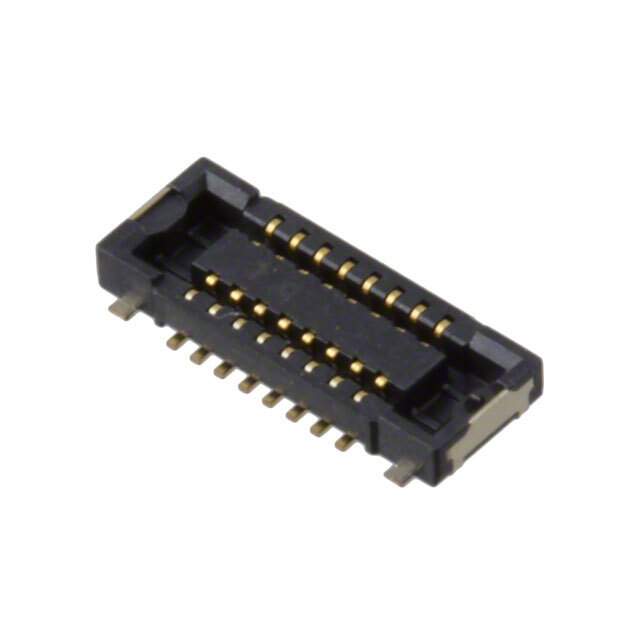

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020915-AXE516124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE516124 CAD Model

Description

The Panasonic Electric Works Connector is a two-row, 16-position socket with center strip contacts.

  • Rows: Two
  • Positions: 16
  • Contact Type: Center Strip
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.030" (0.75mm)
  • Plating: Gold
  • Solder Retention: Yes
  • Mated Stacking Heights: 0.8mm and 1mm
  • Mounting: Surface Mountable
  • Packaging: Reels of 5k pieces
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4000
  • Other Part Numbers: 1020915-AXE516124
