Same model may have multiple batches, images only for reference.

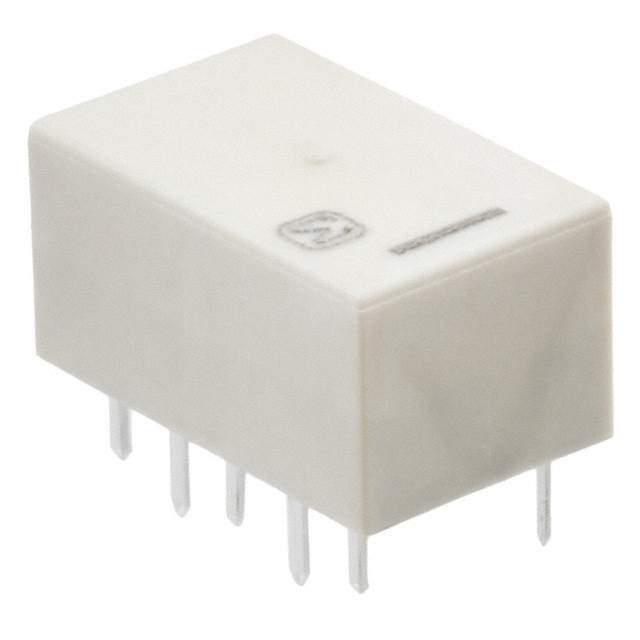

ARS144H Real Image
Same model may have multiple batches, images only for reference.

ARS144H

Part No ARS144H
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY RF SPDT 500MA 4.5V  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARS
Package Box
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 6 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARS144
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Other Names 255-4180-5
Standard Package 50
Win Source Part Number 967516-ARS144H
Ultra Librarian 3D Model Ultra Librarian ARS144H CAD Model

Description

The Panasonic Electric Works ARS144H is a high frequency (RF) relay with a SPDT (1 Form C) contact form.

  • Switching Voltage: 30VDC - Max
  • Contact Rating: 500mA
  • Coil Type: Non-Latching
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 101 Ohms
  • Coil Current: 44.4 mA
  • Operate Time: 10ms
  • Release Time: 6ms
  • Contact Material: Gold Plating
  • Packaging: Box
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 70°C
  • Common-Used Part: Msystems MD2534-D1G-X-P (High Popularity)
  • Low Popularity Product: Murata Electronics North America 712050-SAFFB1G58KE0F0A (Limited Supply and Demand)
  • RoHS State: Yet to be Verified
