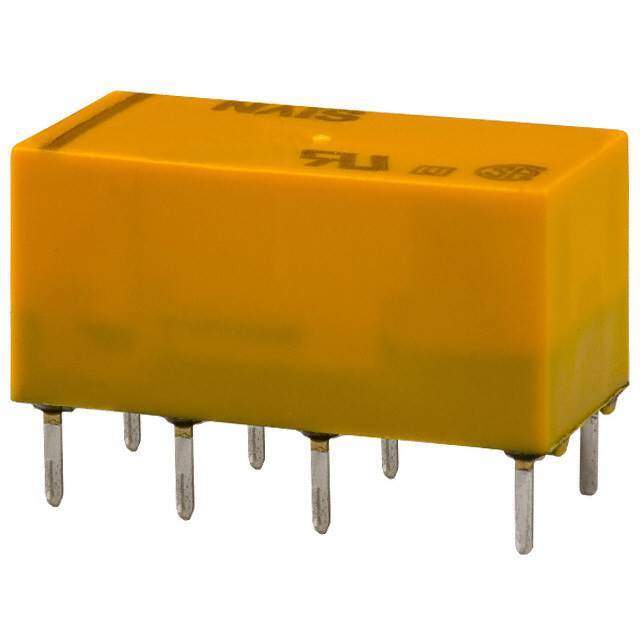

DS2Y-S-DC48V Real Image
Same model may have multiple batches, images only for reference.

DS2Y-S-DC48V

Part No DS2Y-S-DC48V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 6.3mA
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 4ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 7.68 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 1034849-DS2Y-S-DC48V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DS2Y-S-DC48V CAD Model

Description

The Panasonic Electric Works DPDT (2 Form C) General Purpose Relay is a highly efficient and reliable device designed for use in various electronic applications.

  • Relay Type: General Purpose
  • Coil Voltage: 48VDC
  • Contact Form: DPDT (2 Form C)
  • Coil Type: Non-Latching
  • Coil Resistance: 7.68 kOhms
  • Coil Current: 6.3mA
  • Operating Temperature: -40°C to 70°C
  • Switching Voltage: 250VAC, 220VDC
  • Turn On Voltage (Max): 33.6 VDC
  • Turn Off Voltage (Min): 4.8 VDC
  • Operate Time: 4ms
  • Release Time: 3ms
  • Contact Rating (Current): 2A
  • Mounting Type: Through Hole
  • Package Quantity: 50
  • Manufacturer: Panasonic Electric Works
