NXP PMEG6010ELRX Schottky Barrier Diode

The NXP PMEG6010ELRX is a highly efficient, low forward voltage Schottky barrier diode designed for applications requiring fast switching and low power loss. This diode is part of NXP's extensive range of low VF (forward voltage) Schottky diodes, which are known for their high efficiency and reliability.

With a reverse voltage of 60V and a forward current of 1A, the PMEG6010ELRX is suitable for a variety of applications, from power management to high-frequency inverters. Its low forward voltage drop contributes to reduced power consumption and improved system efficiency, making it an ideal choice for portable devices and energy-sensitive circuits.

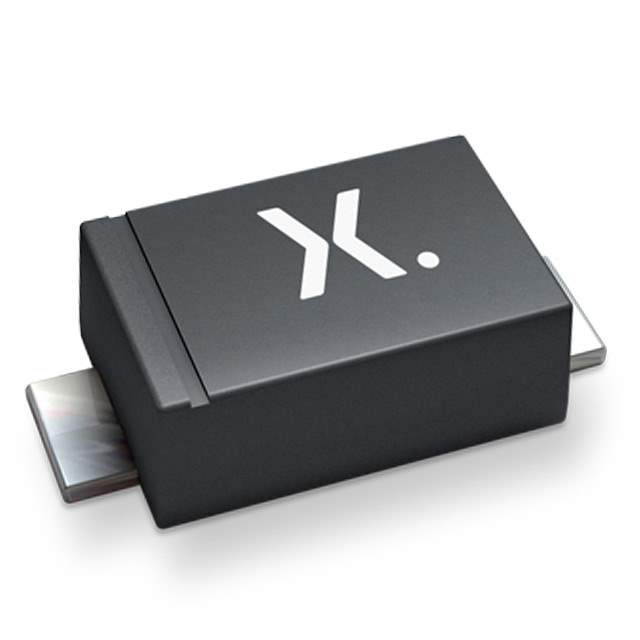

The PMEG6010ELRX is housed in a compact, leadless SOD-123W surface-mount package, which not only saves valuable board space but also offers excellent power dissipation characteristics. The small form factor combined with the low thermal resistance of the package ensures that the diode can maintain optimal performance even in confined spaces.

Key features of the PMEG6010ELRX include:

• Low forward voltage (VF) for high efficiency
• High forward surge current capability
• Average forward current (IF(AV)) of 1A
• Reverse voltage (VR) of 60V
• Low leakage current to minimize power loss
• Fast switching speed for high-frequency applications
• Leadless, ultra-small SOD-123W package for space-saving designs
• Compatible with automated placement processes
• Halogen-free and RoHS compliant

Applications for this Schottky barrier diode are diverse, ranging from low voltage, high frequency inverters, freewheeling, and polarity protection applications. Its performance is particularly well-suited for switch-mode power supplies (SMPS), DC-DC converters, and reverse polarity protection circuits where efficiency is paramount.

Overall, the NXP PMEG6010ELRX Schottky barrier diode offers designers a robust, high-performance solution for their power management challenges. Its combination of low forward voltage, fast switching, and compact packaging makes it an excellent choice for modern electronic devices where efficiency and space savings are critical.
