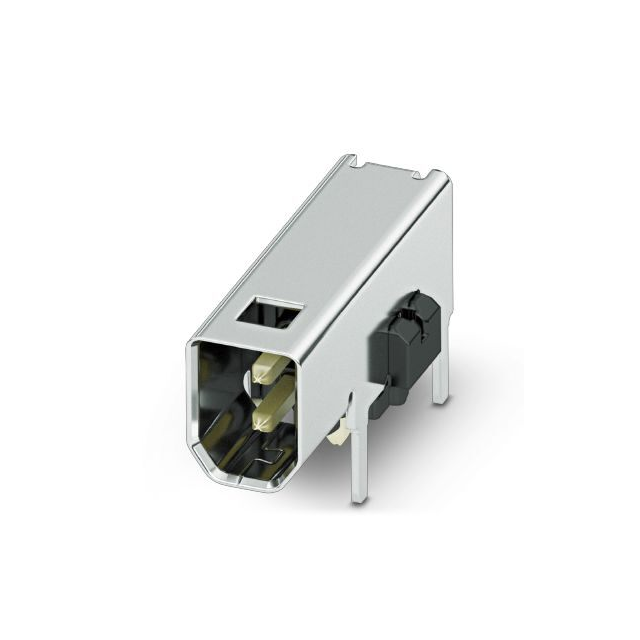

1163797 Phoenix Contact
Same model may have multiple batches, images only for reference.

1163797

Part No 1163797
Manufacturer Phoenix Contact
Catalog Modular Connectors
Description SPE PCB CONNECTOR, TYPE: IEC 631
Datasheet
1163797 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310631-1163797
Manufacturer Phoenix Contact
Category Connectors, Interconnects > Modular Connectors > Modular Connector Jacks
Part Status Active
Connector Type Jack
Number of Positions/Contacts 2P2C Single Pair Ethernet (SPE)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Ultra Librarian 3D Model Ultra Librarian 1163797 CAD Model

Description

Advantages • Compact design for maximum space savings<br />• Connectors in accordance with IEC 63171-2 • THR solderable • Robust industrial design • 360° shielding • Data transmission up to 600 MHz
