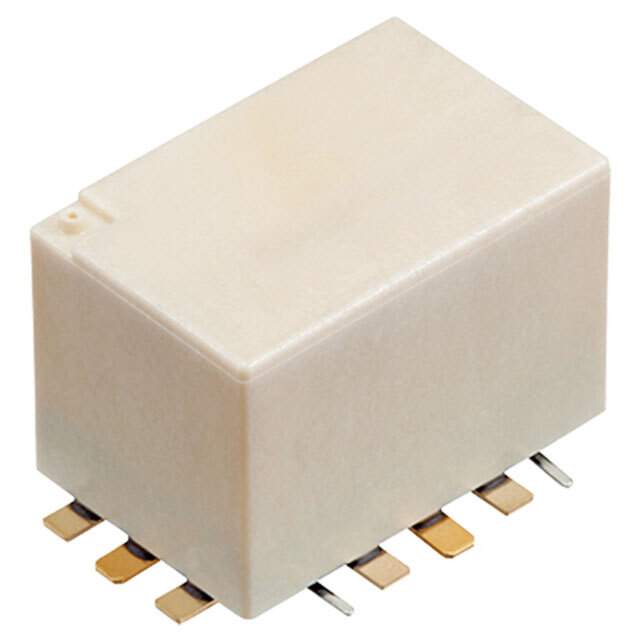

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Tray
Coil Type Non Latching
Coil Current 13.3mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 5ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Style SMD
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Gold Plating
Coil Power 320mW
Coil Resistance 1.8 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810932-ARN10A24
Ultra Librarian 3D Model Ultra Librarian ARN10A24 CAD Model

Description

The Panasonic Electric Works component is a sealed, flux-protected, gull-wing style surface mount device with a SPDT (1 Form C) contact form.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Gold Plating
  • Coil Resistance: 1.8 kOhms
  • Coil Voltage: 24VDC
  • Coil Current: 13.3mA
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Operating Temperature Range: -40°C ~ 85°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 50
