Same model may have multiple batches, images only for reference.

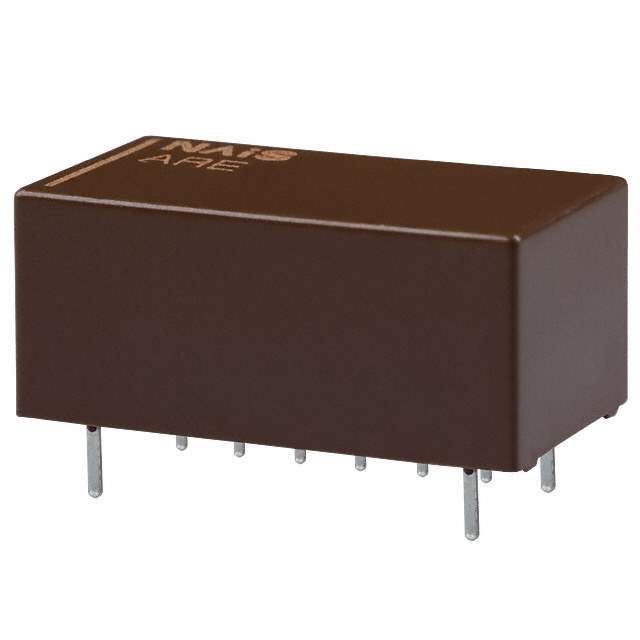

ARE104H Real Image
Same model may have multiple batches, images only for reference.

ARE104H

Part No ARE104H
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 500MA 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Manufacturer Panasonic Electric Works
Packaging Box
Product Status Obsolete
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 5 ms
Mounting Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARE104
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number 255-2700
Standard Package 50
Win Source Part Number 1323857-ARE104H
Ultra Librarian 3D Model Ultra Librarian ARE104H CAD Model

Description

The ARE104H from Panasonic Electric Works is a high-frequency (RF) relay that belongs to the family of relays.

  • Supply and Demand Status: not applicable
  • Manufacturer: Panasonic Electric Works
  • Win Source Part Number: 1323857-ARE104H
  • Packaging: box
  • Termination Style: PC Pin
  • Contact Form: SPDT (1 Form C)
  • Contact Material: gold plating
