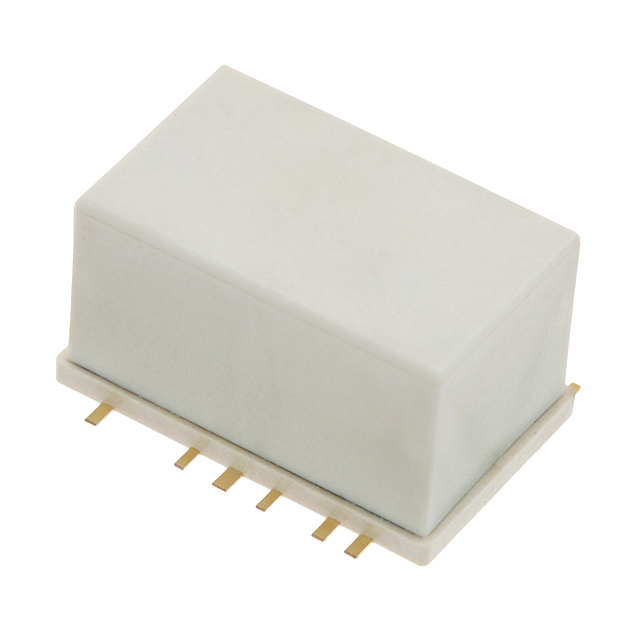

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Coil Type Non Latching
Coil Current 15.5 mA
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 6.75 VDC
Must Release Voltage 0.9 VDC
Operate Time 4 ms
Release Time 4 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1549623-ARA200A09
Ultra Librarian 3D Model Ultra Librarian ARA200A09 CAD Model
