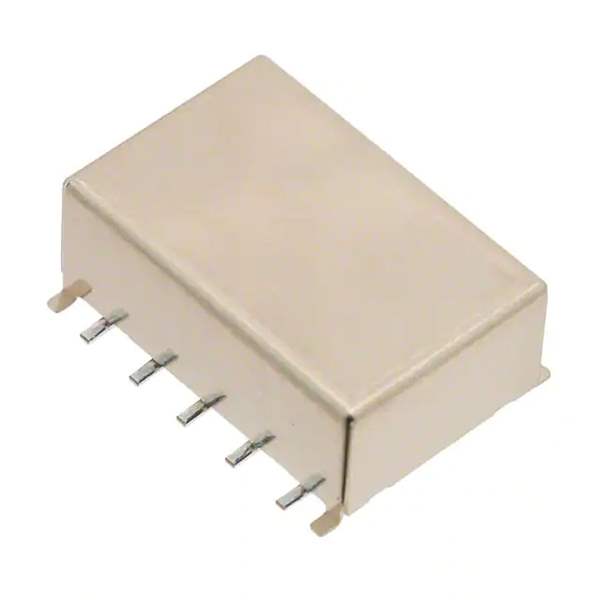

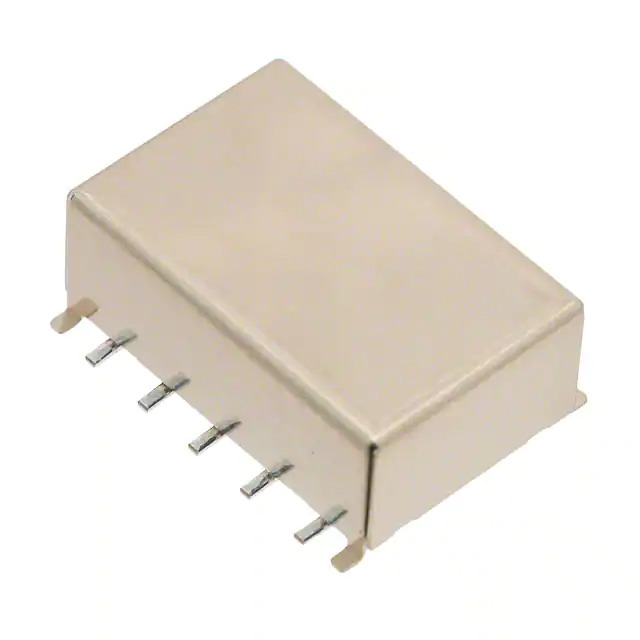

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARA
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 28.1 mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 4 ms
Release Time 4 ms
Features -
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Coil Power 140mW
Coil Resistance 178 Ohms
Base Product Number ARA200
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373496-ARA200A05
Ultra Librarian 3D Model Ultra Librarian ARA200A05 CAD Model

Description

The 1373496-ARA200A05 is a high-frequency (RF) relay from Panasonic Electric Works.

  • Series: ARA
  • Coil Voltage: 5VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 1 A
  • Switching Voltage: 30VDC (Max)
  • Coil Current: 28.1 mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 3.75 VDC
  • Must Release Voltage: 0.5 VDC
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Coil Resistance: 178 Ohms
  • Coil Power: 140mW
  • Packaging: Tube
