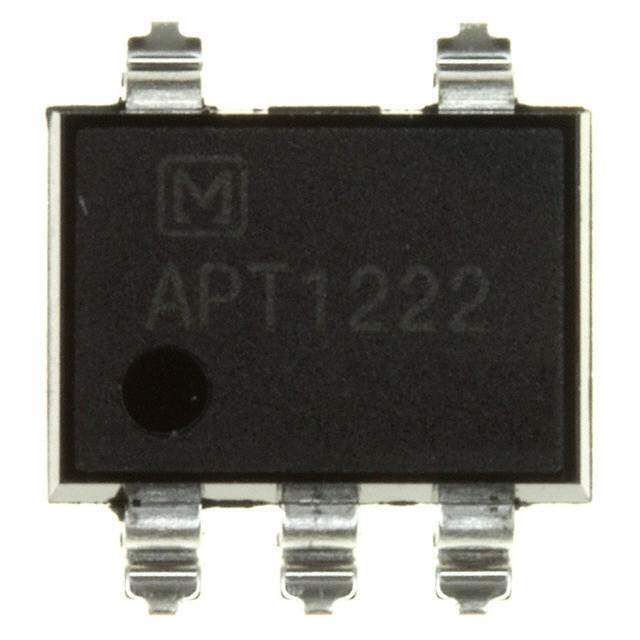

APT1222AX Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.21V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals cUR, VDE
Win Source Part Number 053240-APT1222AX
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APT1222AX CAD Model

Description

Product Overview

The APT1222AX is a cutting-edge electronic component that combines efficiency, adaptability, and performance, making it a prime choice for sophisticated systems.

  • Applications:
  • Embedded computing systems
  • Military and defense electronics
  • Automation control in manufacturing
  • High-performance computing
  • AI-driven technologies

Features and Benefits

  • Remarkable scalability and application flexibility
  • Energy-efficient operation to reduce power costs
  • Advanced error-correcting capabilities for reliable performance
  • Modular design for enhanced customization
  • Compliant with stringent industry regulations

The APT1222AX is ideal for developers who need a highly adaptable and efficient component for modern, high-demand applications.
