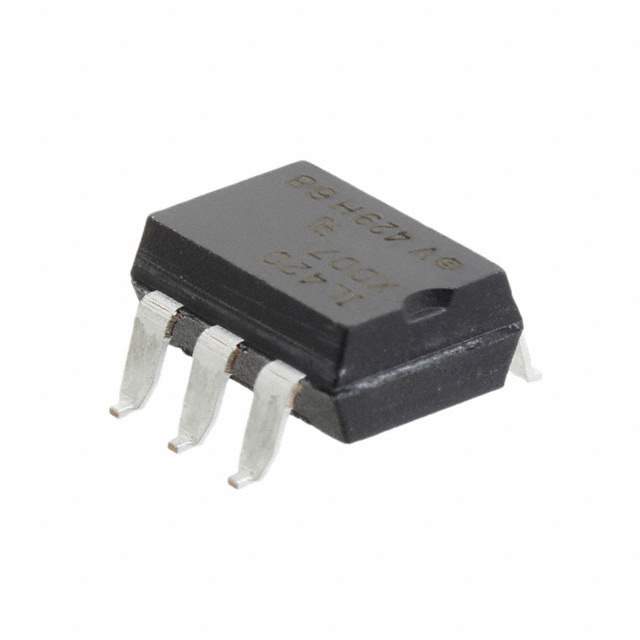

IL420-X009T Real Image
Same model may have multiple batches, images only for reference.

IL420-X009T

Part No IL420-X009T
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description Optocoupler, Phototriac Output, High dV/dt, Low Input Current
Datasheet
IL420-X009T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5300Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 10kV/μs
Current - LED Trigger (Ift) (Maximum) 2mA
Current - On State (It (RMS)) (Maximum) 300mA
Current - Hold (Ih) 500μA
Turn On Time 35μs
Voltage - Forward (Vf) (Typ) 1.16V
Current - DC Forward (If) (Maximum) 60mA
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 6-SMD
Manufacturer Package 6-SMD
Approvals CQC, CSA, cUR, UR
Win Source Part Number 1185433-IL420-X009T
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name IL420
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian IL420-X009T CAD Model

Description

The Vishay Semiconductor Opto Division IL420-X009T is a 6-SMD optocoupler with a triac output type.

  • Voltage Rating: 600V
  • Isolation Voltage: 5300Vrms
  • Current Rating: 300mA
  • Turn On Time: 35μs
  • Packaging: reel
  • Operating Temperature: -55°C to 100°C
  • Approvals: CQC, CSA, cUR, and UR
