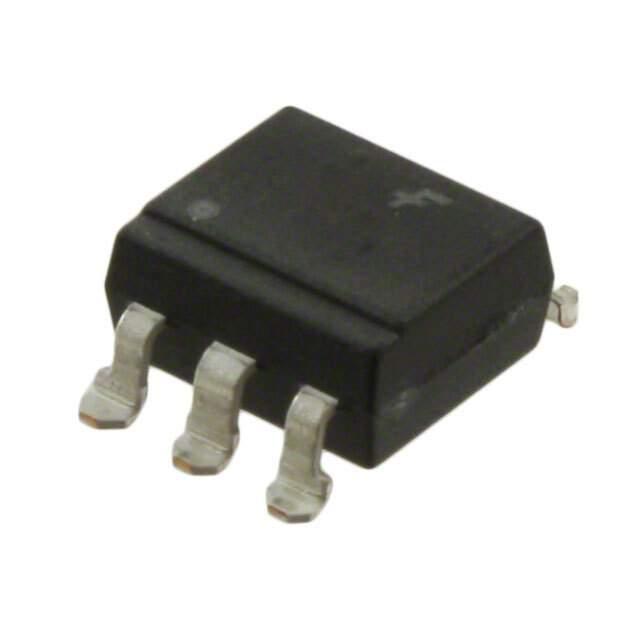

ON Semiconductor FOD4118SD: High-Speed MOSFET Gate Drive Optocoupler

The FOD4118SD from ON Semiconductor is a high-performance, high-speed MOSFET gate drive optocoupler designed to meet the rigorous demands of fast-switching power systems. This optocoupler is a critical component for ensuring electrical isolation between low-voltage control circuits and high-voltage power switches, making it an ideal choice for a variety of industrial and commercial applications.

Featuring a 2.5A peak output current and fast propagation delays, the FOD4118SD is engineered to drive power MOSFETs and IGBTs efficiently. Its robust design allows for rapid switching of power devices, which is essential for minimizing power losses and improving the efficiency of power conversion systems.

The FOD4118SD comes in a compact 8-pin DIP package with surface mount and tape-and-reel options, which makes it convenient for automated assembly processes. The device's insulation and safety standards are top-notch, with a 5kVrms minimum isolation voltage for one minute and a reinforced insulation rating that complies with international safety regulations.

Key features of the FOD4118SD include:

• High peak output current of 2.5A
• Fast propagation delay with a typical value of 500ns
• CMR of 35kV/μs minimum at VCM = 1500V
• Wide operating temperature range from -40°C to +100°C
• Under Voltage Lock-Out protection (UVLO) with hysteresis
• Fail-safe design ensures no output pulsing during power-up/power-down
• Compliant with UL1577, IEC60747-5-5 (VDE0884-5), and IEC60950-1

Applications of the FOD4118SD are diverse and include switch-mode power supplies, motor controls, and inverters for renewable energy systems. Its ability to provide electrical isolation while delivering high-speed performance makes it a versatile choice for designers looking to enhance system reliability and efficiency.

Overall, the FOD4118SD from ON Semiconductor is a robust and reliable solution for driving power MOSFETs and IGBTs in a wide range of high-speed switching applications. Its combination of speed, power, and safety features ensures that it can meet the needs of even the most demanding electrical isolation tasks.
