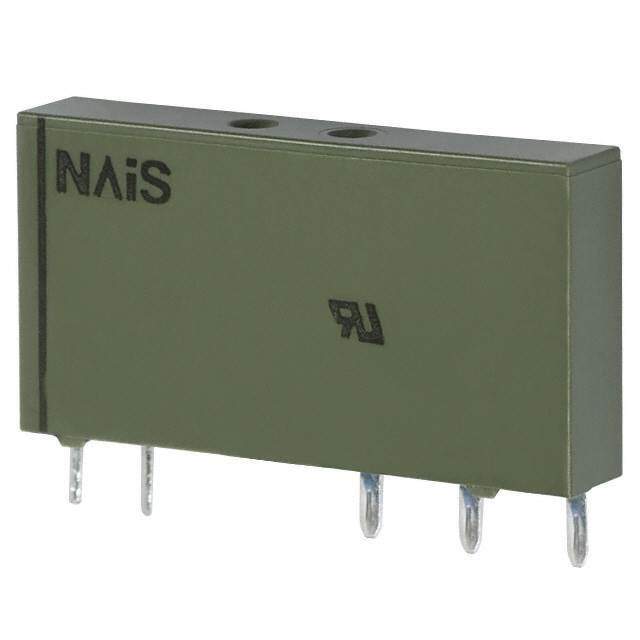

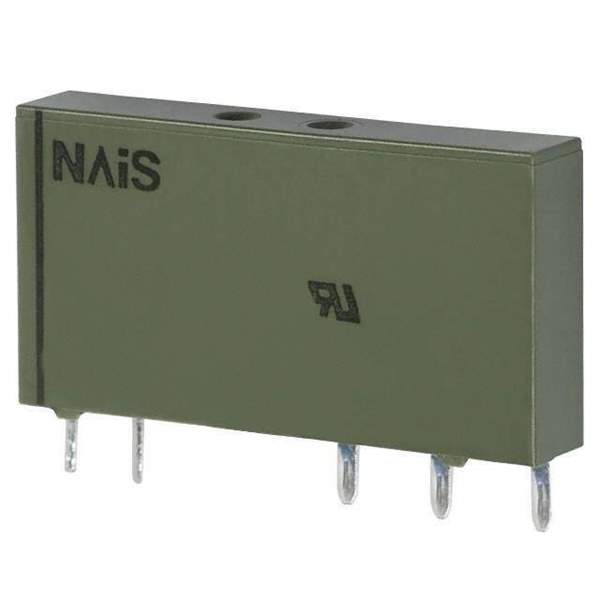

APE30124 Real Image
Same model may have multiple batches, images only for reference.

APE30124

Part No APE30124
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
APE30124 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series APE
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 7 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 15.84 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 3.39 kOhms
Base Product Number APE301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1847,255-1847-ND,255-1868,APE30124-ND
Standard Package 20
Win Source Part Number 1026555-APE30124
Ultra Librarian 3D Model Ultra Librarian APE30124 CAD Model

Description

The APE30124 is a power relay with a SPDT (1 Form C) contact form.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.39 kOhms
  • Contact Rating (Current): 6A
  • Switching Voltage: 250VAC - Max
  • Packaging: tube
  • Mounting: through-hole
  • Termination Style: PC Pin
  • Temperature Range: -40°C ~ 85°C
  • MSL Level: 1 (Unlimited)
