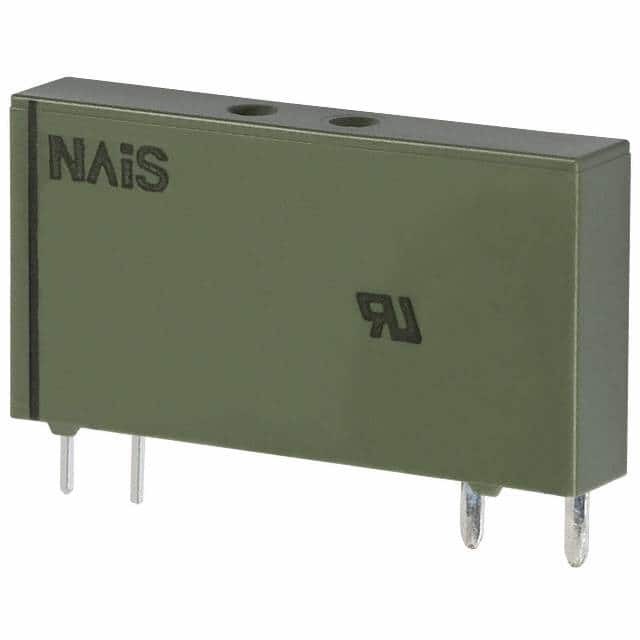

Same model may have multiple batches, images only for reference.
APE1004H
Same model may have multiple batches, images only for reference.

APE1004H

Part No APE1004H
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 6A 4.5V
Datasheet
APE1004H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series APE
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 4.5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 38 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 2.97 VDC
Must Release Voltage 0.225 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 119 Ohms
Base Product Number APE100
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 911612-APE1004H
Ultra Librarian 3D Model Ultra Librarian APE1004H CAD Model

Description

The 911612-APE1004H is a power relay from Panasonic's APE series.

  • Contact Form: Single-Pole Single-Throw Normally Open (SPST-NO)
  • Contact Material: Silver Alloy
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 119 Ohms
  • Contact Rating: 6A
  • Switching Voltage: 250VAC
  • Operating Temperature: -40°C to 85°C
  • Package: Tube
  • Quantity Per Tube: 20 pieces
  • Status: Obsolete
