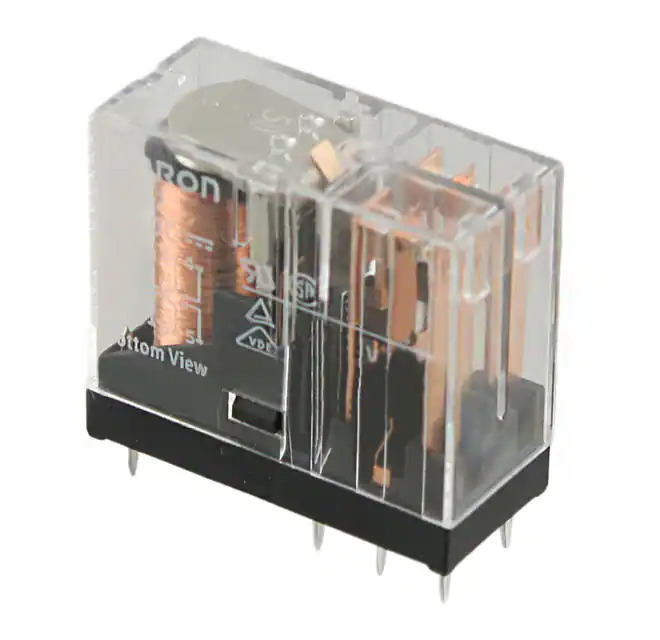

G2R-2-DC12 Omron
Same model may have multiple batches, images only for reference.

G2R-2-DC12

Part No G2R-2-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
G2R-2-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2R
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 43.6 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.8 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 275 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373399-G2R-2-DC12
Ultra Librarian 3D Model Ultra Librarian G2R-2-DC12 CAD Model

Description

The G2R-2-DC12 is a DPDT (Double Pole Double Throw) power relay from Omron Electronics Inc-EMC Div.

  • Coil Voltage: 12VDC
  • Contact Rating: 5A
  • Switching Voltage: 380VAC, 125VDC maximum
  • Seal Rating: Sealed Flux Protection
  • Mounting Type: Through-Hole
  • Release Time: 5ms
  • Operate Time: 15ms
  • Application: General-Purpose
