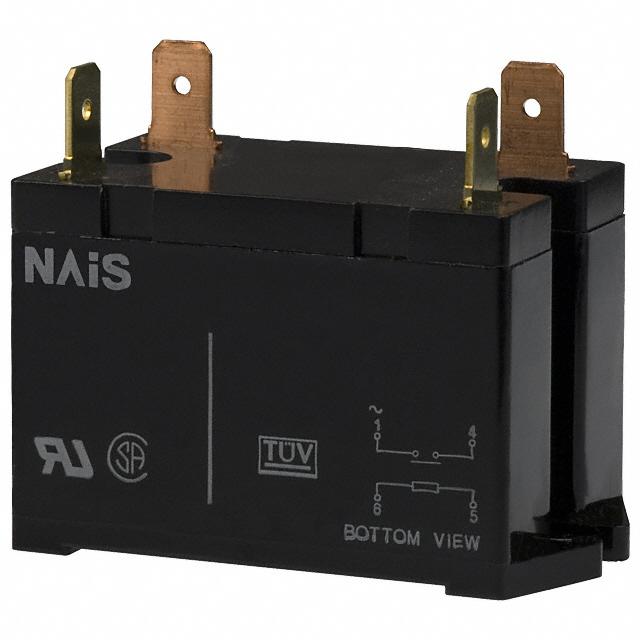

Same model may have multiple batches, images only for reference.
HEV2AN-P-DC6V Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HEV2AN-P-DC6V

Part No HEV2AN-P-DC6V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 20A 6V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 20 A
Switching Voltage 1000VDC - Max
Load - Max Switching 20000W
Coil Current 320 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 4.2 VDC
Must Release Voltage 0.3 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Approval Agency cURus, VDE
Relay Type General Purpose
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1549114-HEV2AN-P-DC6V
Ultra Librarian 3D Model Ultra Librarian HEV2AN-P-DC6V CAD Model
