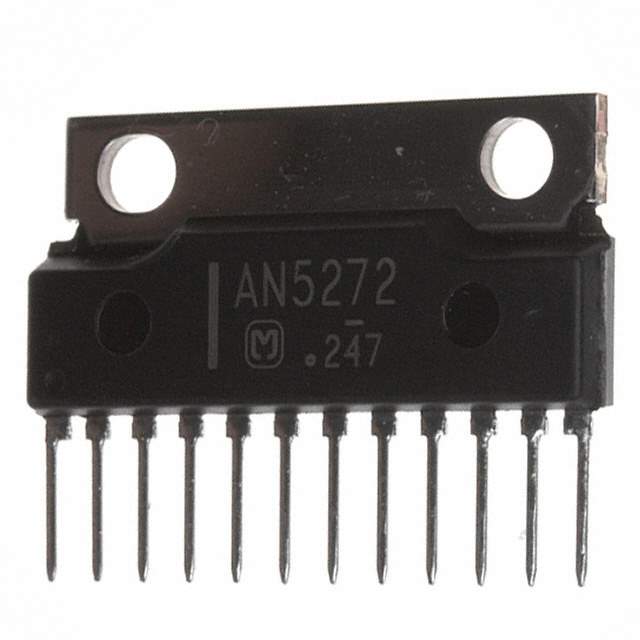

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 4.1W x 2 @ 8 Ohm
Supply Voltage - Operating 14.2 V to 27.5 V
Features Mute, Short-Circuit and Thermal Protection, Volume Control
Mounting Through Hole
Temperature Range - Operating -25°C to 75°C (TA)
Case / Package 12-SIL
Dimension 12-SIP + Tab
Win Source Part Number 039192-AN5274
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AN5274 CAD Model

Description

AN5274 Description

The AN5274 is tailored for signal processing applications, providing superior accuracy and reliability. This component is designed to handle complex signal transformations, making it a fundamental building block in systems where precise signal manipulation is required.

Features and Benefits

  • High precision signal processing
  • Robust noise rejection capabilities
  • Wide frequency response
  • High signal integrity

Applications

  • Communication systems
  • Signal transmission devices
  • Audio processing units
  • Data acquisition systems

With its focus on superior accuracy and noise rejection, the AN5274 is indispensable in applications demanding meticulous signal fidelity.
