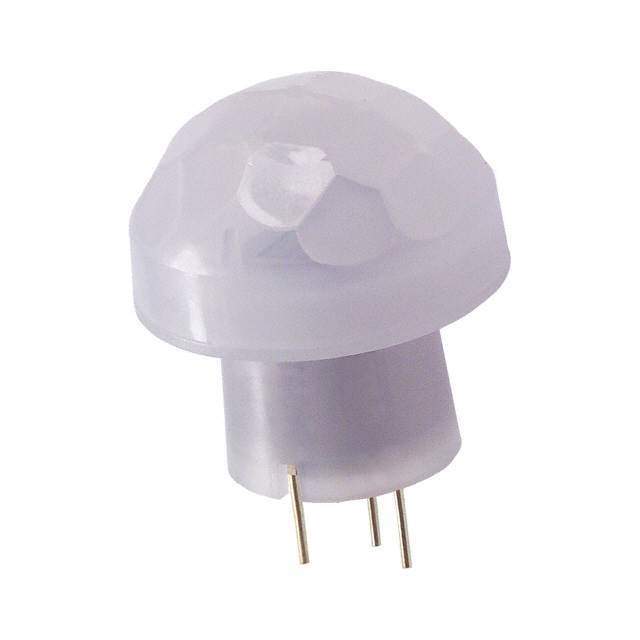

AMN14112 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Optical
Mfr Panasonic Electric Works
Series AMN
Package Bulk
Sensor Type PIR (Passive Infrared)
Sensing Distance 394" (10m) 32.8'
Output Type Digital
Voltage - Supply 3V ~ 6V
Trigger Type Internal
Features Long Distance Lens, White
Package / Case Cylinder
Temperature Range - Operating -20°C ~ 60°C (TA)
Detection Pattern 10m
Base Product Number AMN141
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names 255-1803,2266-AMN14112
Standard Package 50
Win Source Part Number 1189268-AMN14112
Ultra Librarian 3D Model Ultra Librarian AMN14112 CAD Model

Description

The AMN14112 is a PIR (Passive Infrared) Sensor with a long distance lens and a white color.

  • Series: AMN
  • Sensing Distance: 394 inches or 10 meters
  • Detection Pattern: 10 meters
  • Output Type: Digital
  • Trigger Type: Internal
  • Voltage Supply: 3V to 6V
  • Temperature Range: -20°C to 60°C
  • Package: Cylindrical
  • Packaging: Bulk
  • Standard Package: 50 units
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8541.49.9500
  • Manufacturer: Panasonic Electric Works
  • Alternate Names: 255-1803, 2266-AMN14112
