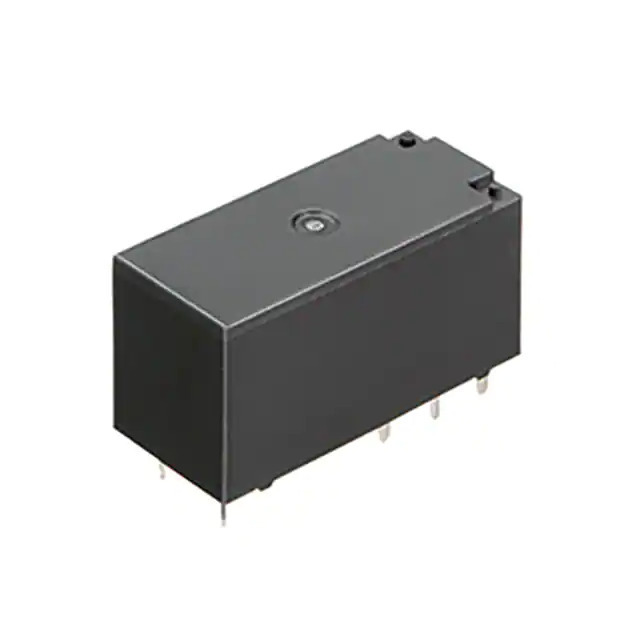

ALZN5F05W Panasonic
Same model may have multiple batches, images only for reference.

ALZN5F05W

Part No ALZN5F05W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZN
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 80 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 63 Ohms
Base Product Number ALZN5F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373433-ALZN5F05W
Ultra Librarian 3D Model Ultra Librarian ALZN5F05W CAD Model

Description

The ALZN5F05W is a power relay from Panasonic Electric Works.

  • Series: ALZN
  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Switching Voltage: 440VAC (maximum)
  • Coil Current: 80mA
  • Coil Type: Non-Latching
  • Operating Temperature: -40°C to 105°C
  • Must Operate Voltage: 3.5VDC
  • Must Release Voltage: 0.5VDC
  • Operate Time: 15ms
  • Release Time: 5ms
  • Seal: Flux Protection
  • Coil Insulation: Class F
  • Coil Resistance: 63 Ohms
  • Type: General Purpose
  • REACH: Unaffected
  • ECCN: EAR99
