Same model may have multiple batches, images only for reference.

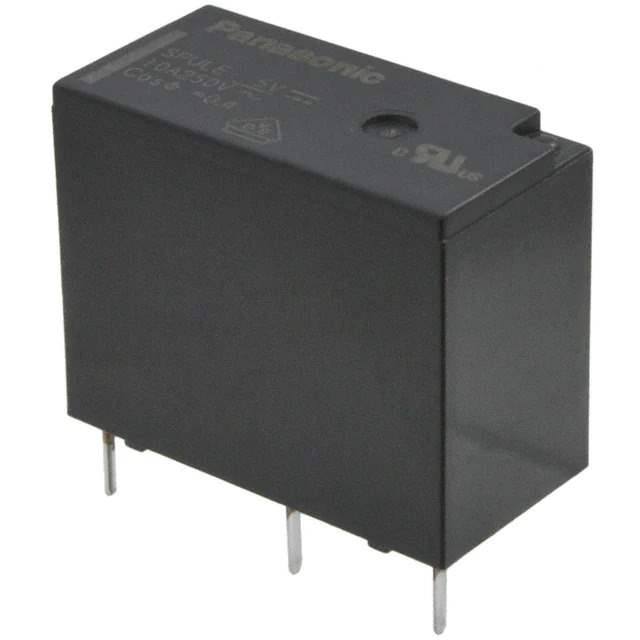

ALQ305 Real Image
Same model may have multiple batches, images only for reference.

ALQ305

Part No ALQ305
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALQ
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.25 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number ALQ30
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 851906-ALQ305
Ultra Librarian 3D Model Ultra Librarian ALQ305 CAD Model

Description

The 851906-ALQ305 is a power relay from Panasonic's ALQ series.

  • Contact Form: SPST-NO (Single-Pole, Single-Throw Normally Open)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Coil Current: 40 mA
  • Operate Time: 20 ms
  • Contact Rating: 10 A
  • Switching Voltage: Up to 250VAC
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • Applications: Industrial and automotive
